Features
1. Incorporates original chip Si3404, high-efficiency, high-safety, stable-performance
2. 10/100/1000Mbps auto-negotiation Ethernet port
3. 802.3af/at-compliant PoE (Power over Ethernet) standard
4. Isolated SMPS (Switching Mode Power Supply), effectively protecting the powered device
5. 5V DC output, suitable for powering Raspberry Pi and other small-scale network devices
6. Black dull-polish metal case, sturdy and rugged, higher protection level, better heat dissipation
Specifications
1. Power Supply: Support 1/2(+); 3/6(-); 4/5(+); 7/8(-) powering
2. POE input voltage: 37V ~ 57V
3. Type-C output: 5V 2.5A (MAX)
4. Cable: Cat-5 UTP
5. Standard: IEEE 802.3 af/at PoE Ethernet
6. Data rate: 10/100/1000Mbps
7. LED indicator: PoE power input indicator

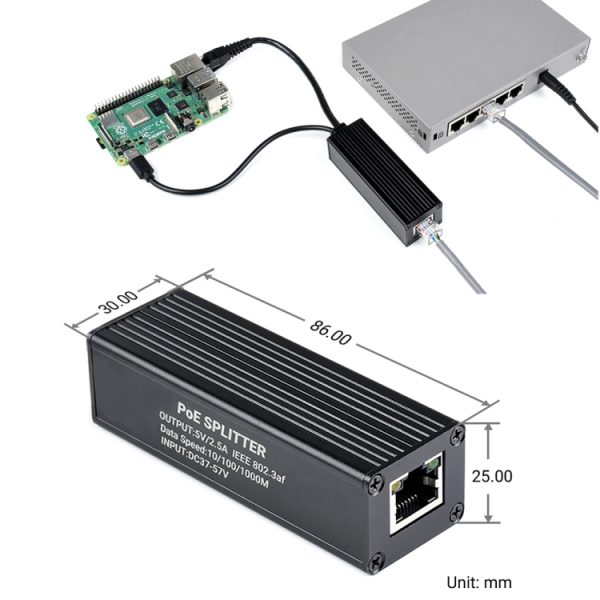

8. Size: 86 x 30 x 25mm (l x w x h)
9. Operation temperature: -40 degree C ~ 85 degree C
Specification:
| Package Weight |
| One Package Weight |
0.10kgs / 0.22lb |
| One Package Size |
15cm * 12cm * 3cm / 5.91inch * 4.72inch * 1.18inch |
| Carton Weight |
10.00kgs / 22.05lb |
| Carton Size |
46cm * 32cm * 32cm / 18.11inch * 12.6inch * 12.6inch |
| Loading Container |
20GP: 566 cartons * 100 pcs = 56600 pcs
40HQ: 1314 cartons * 100 pcs = 131400 pcs |
|
