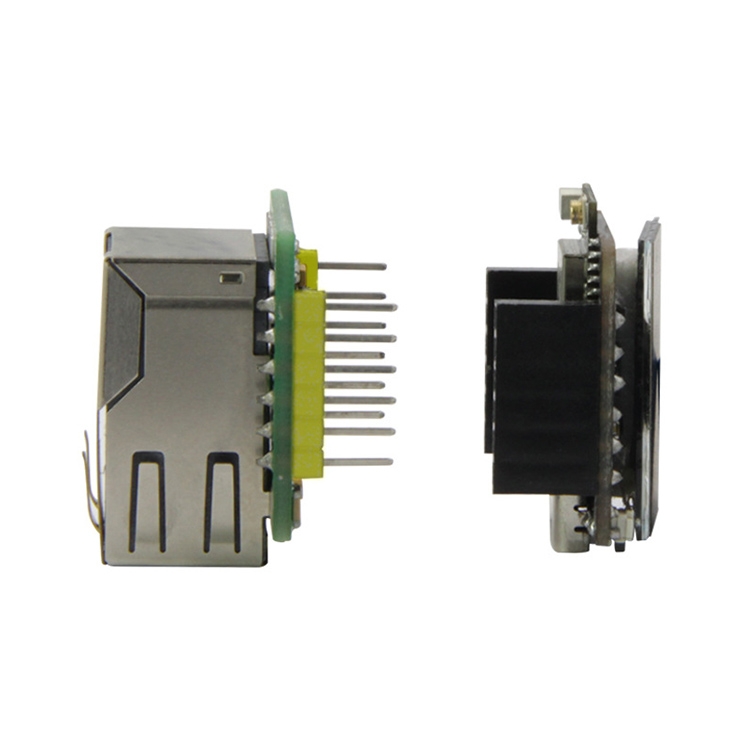

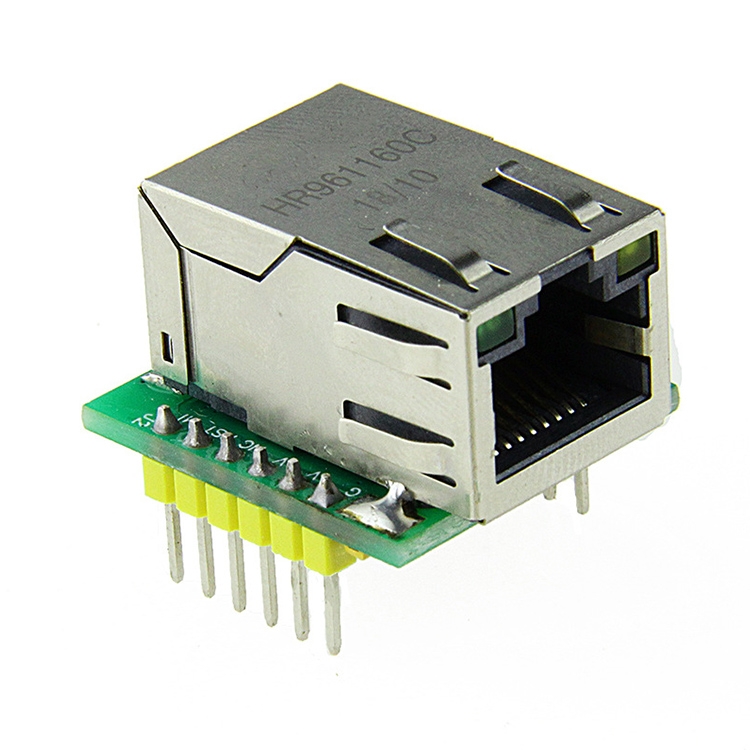

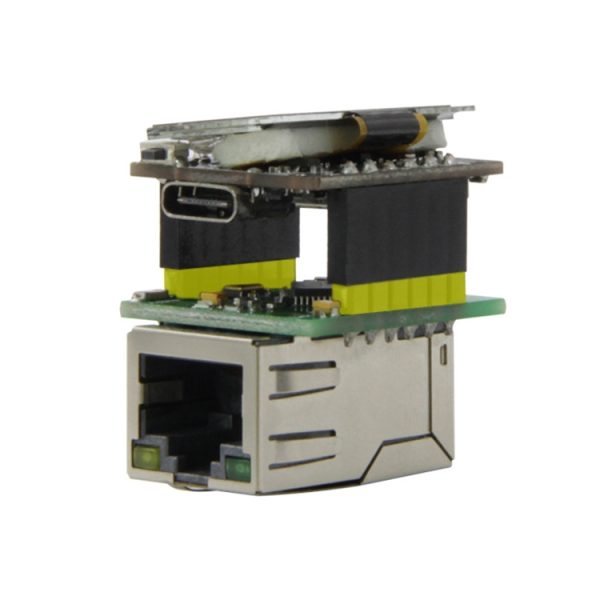

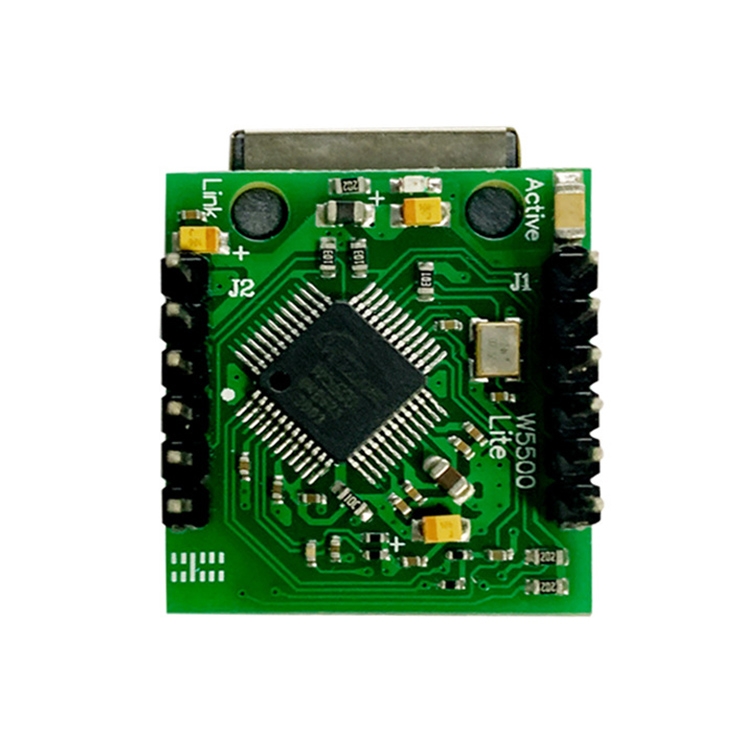

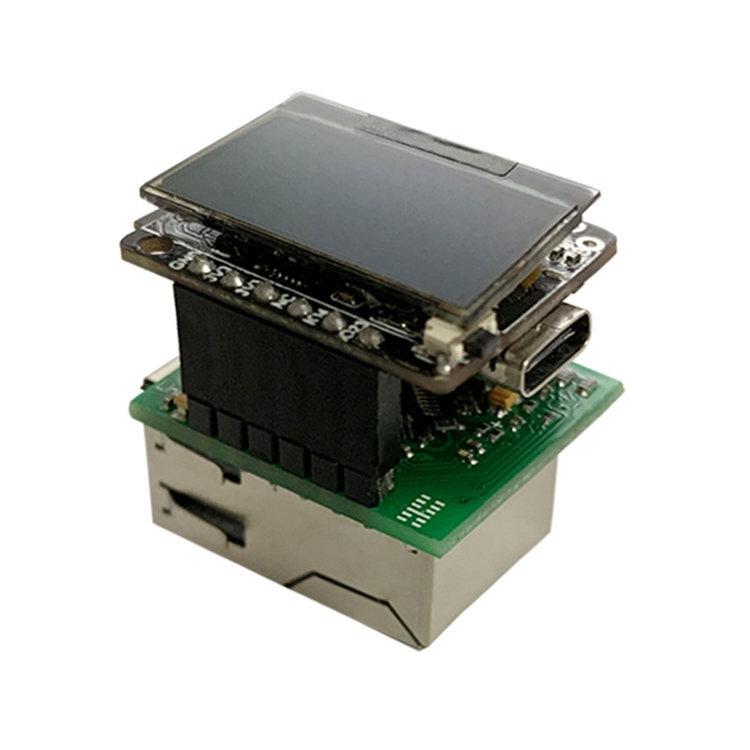

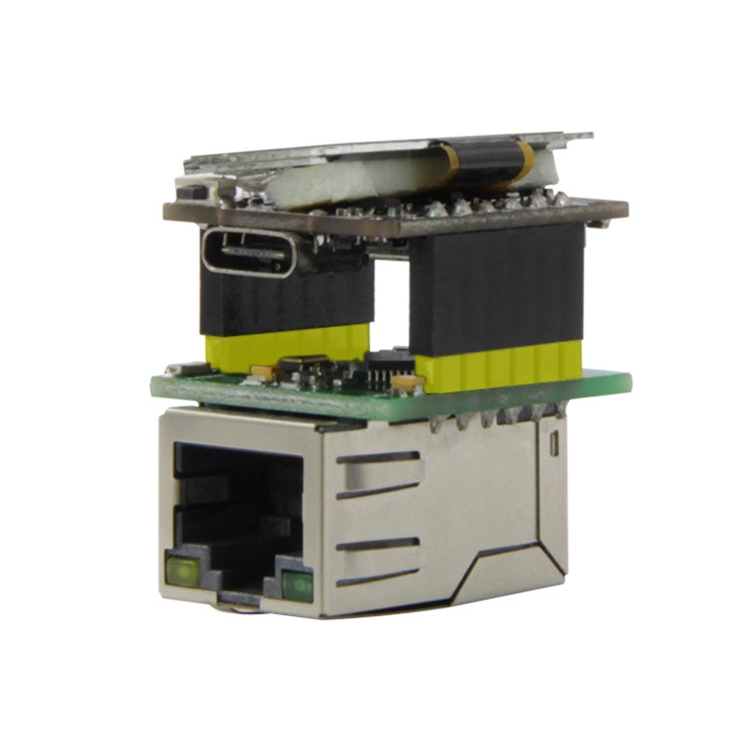

TTGO W5500 Ethernet Gateway Module Board

Name: TTGO W5500 Ethernet Gateway Module Board
Brand: TTGO
SKU: DIY5136
Availability: InStock

$24.50

999999 in stock

Add to compare

Add to wishlist

SKU: DIY5136 Category: Consumer Electronics Tags: Consumer Electronics, DIY Parts & Components, Module, TTGO

Description

1. Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol
2. Integration of the data link layer, physical layer
3. Support the wakeup
4. Support high speed serial peripheral interface (SPI model 0, 3)
5. Internal 32K bytes receive buffer
6. The embedded 10BaseT/100BaseTX Ethernet physical layer (PHY)
7. Support auto negotiation (10/100-Based full duplex or half duplex)
8. The working voltage of 3.3V, I/O and 5V voltage signal
9. Pin type package ultra small, convenient for embedded applications

Specification:

Package Weight

One Package Weight

0.03kgs / 0.07lb

One Package Size

15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch

Qty per Carton

300

Carton Weight

6.00kgs / 13.23lb

Carton Size

42cm * 26cm * 26cm / 16.54inch * 10.24inch * 10.24inch
