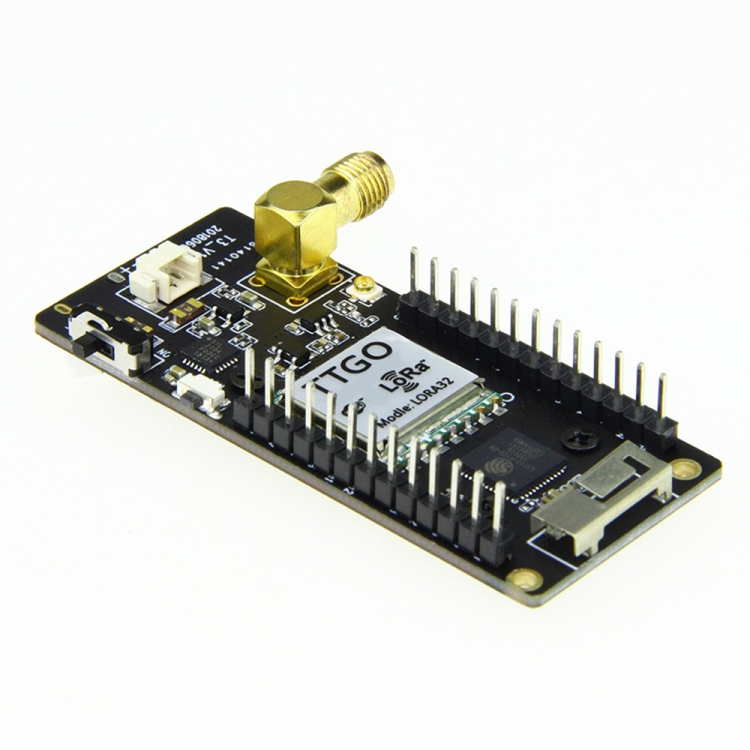

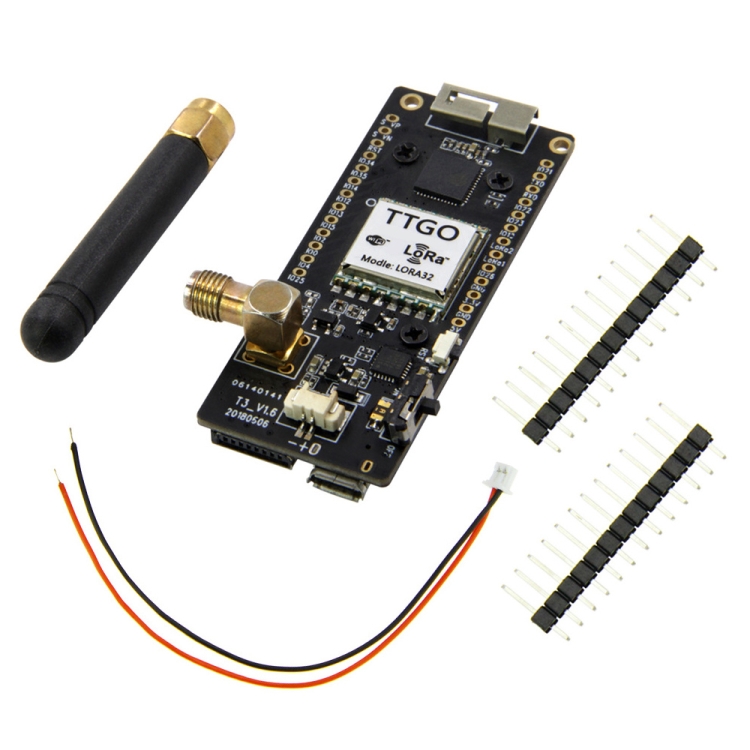

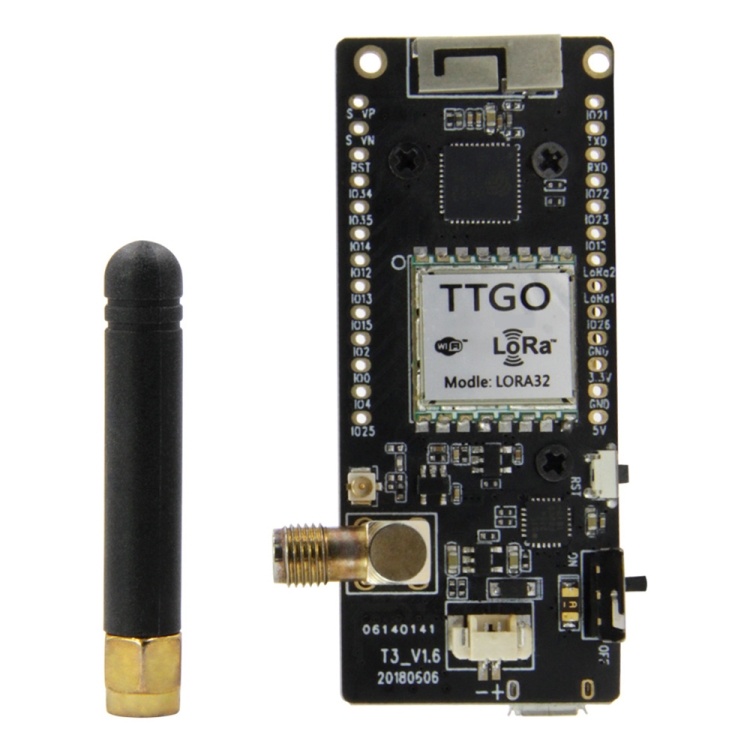

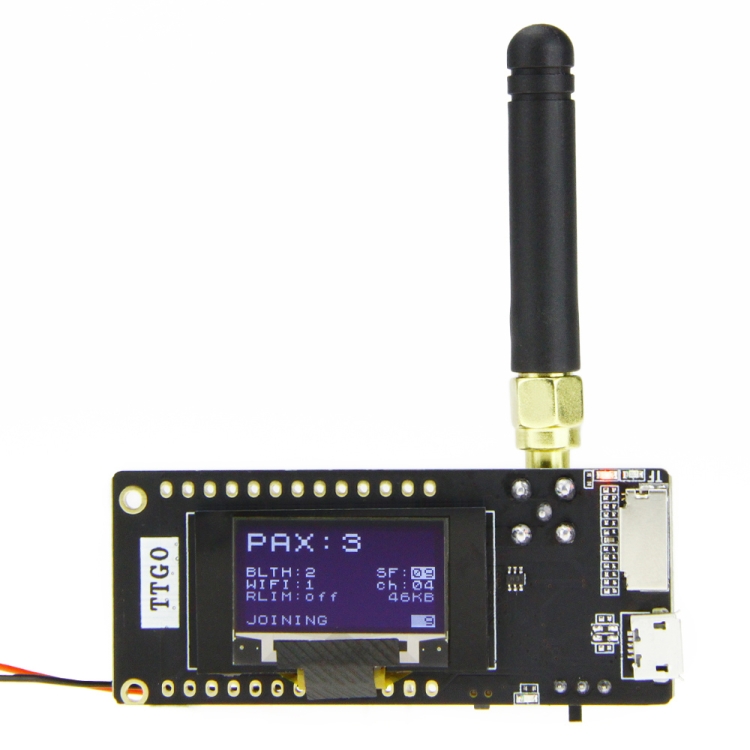

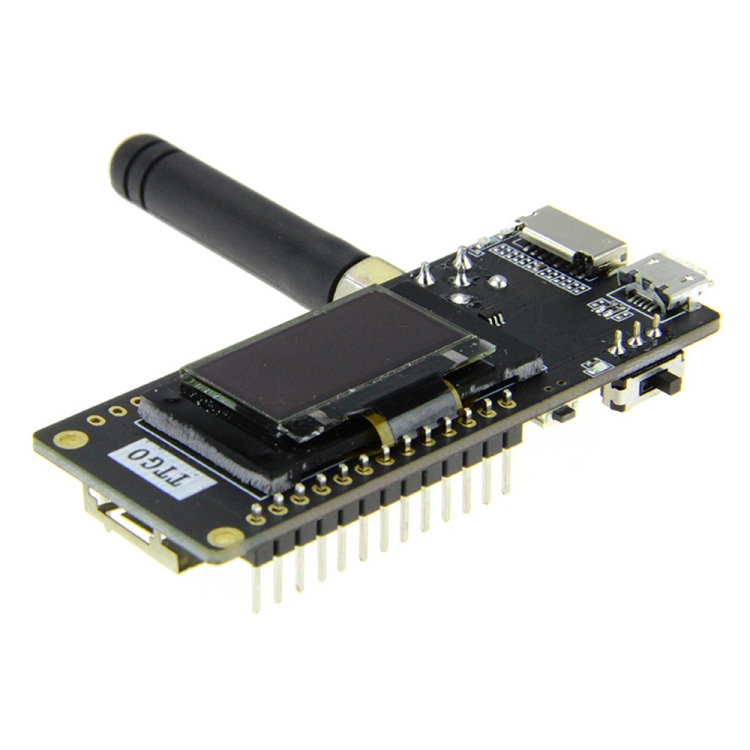

TTGO LORA32 V2.1 ESP32 0.96 inch OLED Bluetooth WiFi Wireless Module 915MHz SMA IP5306 Module with Antenna

1. Working voltage: 1.8~13.7V
2. Acceptable current: 10~114mA
3. Emission current:
– 120mA at + 20dBm
– 90 mA lies at +17dBm
– 29mA at +13dBm
4. Working frequency: 915MHz
5. Transmitting power: + 20dBm
6. Receiving sensitivity:
– 139dBm lies at LoRa & 62.5Khz & SF = 12 & 146bps
– 136dBm lies at LoRa & 125Khz & SF = 12 & 293bps
– 118dBm lies at LoRa & 125Khz & SF = 6 & 9380bps
– 123dBm lies at FSK & 5Khz & 1.2Kbps
7. Frequency error: +/- 15KHz
8. FIFO space: 64Byte
9. Data rate:
-1.2K~1300Kbps at FSK
-0.018K~37.5Kbps at LoRa
10. Modulation mode: FSK, GFSK, MSK, GMSK, LoRa TM, OOK
11. Interface form: SPI
12. Sleep current:
– 0.2uA SLEEP
– 1.5uA IDLE
13. Working temperature: -40 degrees Celsius-+ 85 degrees Celsius
14. Digital RSSI function
15. Automatic frequency correction
16. Automatic gain control
17. RF wake-up function
18. Low voltage detection and temperature sensor
19. Fast wake-up and frequency hopping
20. Highly configurable packet handler
21. SMA antenna IP5306

This product is based on LoRa radio frequency, 868MHz (common in North America), 915MHz (common in Europe) and 433MHz (common in Asia Pacific)
