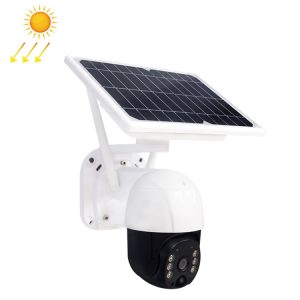

1. Main control CPU: XM650AI
2. Resolution: 2288x1288P 12PFS
3. Aperture: 4mm fixed
4. Viewing angle: 90 degrees
5. Video encoding: H.265
6. External expansion card: support 128G
7. Support mobile APP video playback, alarm recording 5/10/15 seconds optional
8. Waterproof rating: IP66
9. Effective distance of night vision: 10-15 meters
10. Infrared lighting: 4 x LED white lights + 2 x 850NM array infrared lights
11. Solar panel: 8W
12. Battery type: 6 x 18650 batteries 2600mA (not included)
13. Wireless network: 2.4GHZ-2.4835GHZ WiFi (IEE802.11b/g/n)
14. Pan/Tilt range: 320 degrees in horizontal, 90 degrees in vertical

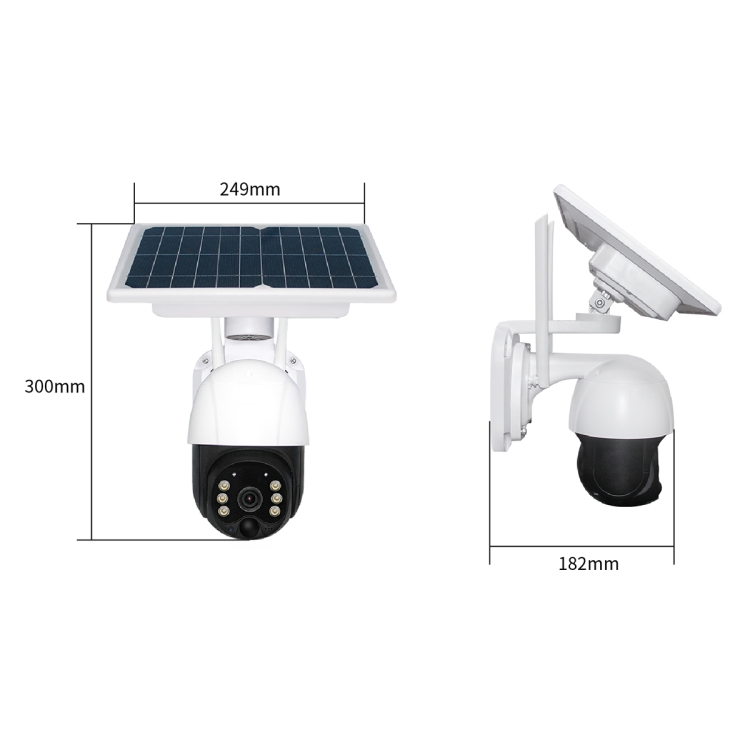

15. Product size: 115*115*170mm
16. Solar panel size: 247*183*43mm
17. Product net weight: 1.14kg (excluding batteries)
18. Packing list:
– Camera x 1
– Bracket x 1
– Manual x 1
– Screw pack x 1
– Screwdriver x 1
Specification:
| General |
| Performance |
Motion detection, Night Vision, Two Way Audio |
|
| Network |
| Wireless |
WiFi 802.11 b/g/n |
| Protocol |
DDNS, NTP, UPNP, DHCP, PPPOE, FTP, RTSP |
|
| System / Hardware |
| Mobile Access |
Android, iPhone OS |
| Sensor Size |
1/2.7 inch Progressive Scan |
| Pan/Tilt-Horizontal Angle |
320 degrees |
| Pan/Tilt-Vertical Angle |
90 degree |
|
| Night Vision |
| Configuration |
2 array LEDs |
|
| Physical Environment |
| Operate Temperature |
-20 to 50 Degree Celsius |
|
| Package Weight |
| One Package Weight |
1.59kgs / 3.49lb |
| One Package Size |
27cm * 20cm * 17cm / 10.63inch * 7.87inch * 6.69inch |
| Carton Weight |
13.40kgs / 29.54lb |
| Carton Size |
56cm * 42cm * 36cm / 22.05inch * 16.54inch * 14.17inch |
| Loading Container |
20GP: 314 cartons * 8 pcs = 2512 pcs
40HQ: 731 cartons * 8 pcs = 5848 pcs |
|
