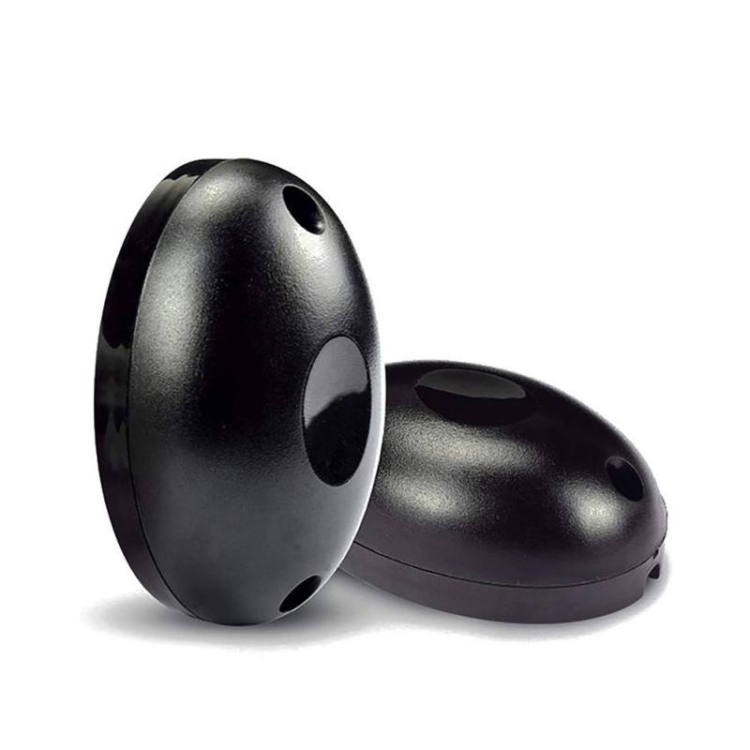

Single Beam Infrared Radiation Detector Automatic Door Light Sensor Burglar Alarm Infrared Alarm Detector

Detection Range:10-20m
Voltage:DC 12-24V
1. Outdoor warning distance: 10m
2. Indoor warning distance: 20m
3. Induction speed: 50ms
4. Alarm output-General: Normally closed and normally open (NC&NO) Contact capacity AV/DC 30V/0.5mA
5. Alarm linkage: Yes
6. Working voltage: DC 12-24V
7. Shell material: PC
8. Product size: 7.6×4.9×2.9cm
9. Anti-glare up to 50,000 LUX, built-in automatic adjustment of strong light filtering system to avoid the influence of glare or car light
10. The all-weather integrated structure of fully sealed rainproof (fog), dustproof (worm), etc. makes it work normally in harsh environments
11. The detector will automatically increase the sensitivity when encountering dense fog or bad weather (AGC circuit)
12. High level of RFI/EMI resistance
13. Unique digital filter circuit design

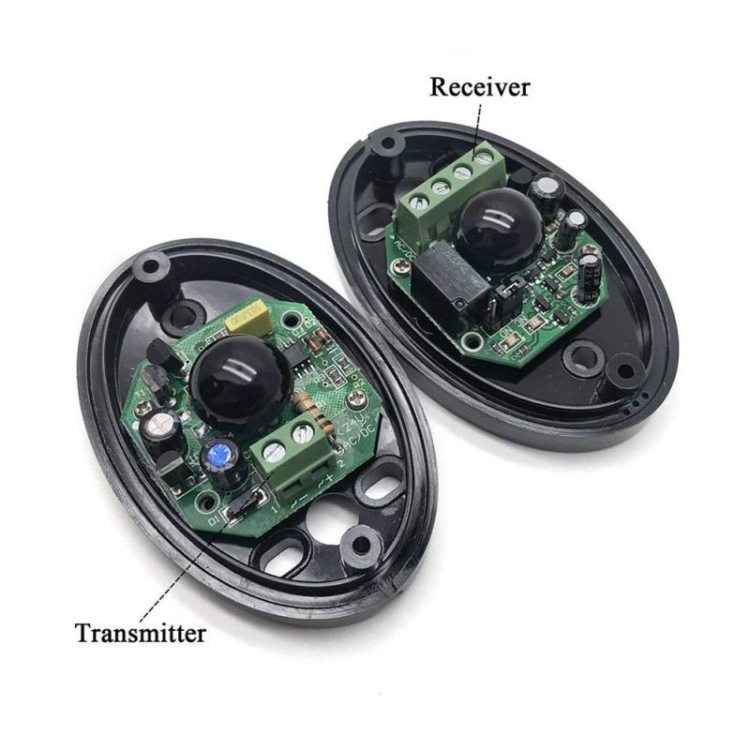

14. High-power transmitting device, photographic margin is up to 90% High-power infrared receiving tube, low-power processing technology Lightning protection circuit design
15. With rain cover design
16. C type relay output
17. The beam interception period can be adjusted to make it more flexible and adaptable
18. Professional anti-interference optical cover
