1. 8 groups of scramblers
2. Remote kill, stun, activate and restore
3. 50 CTCSS / 1024 sets of DCS codes
4. Various scanning functions, including CTCSS / DCS scanning functions

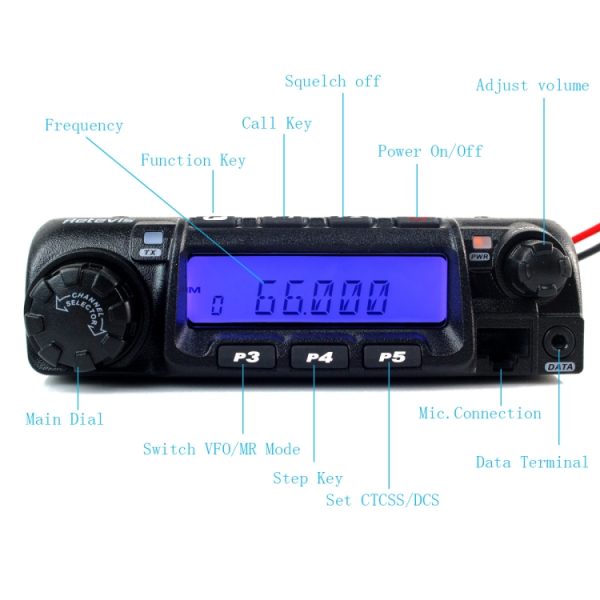

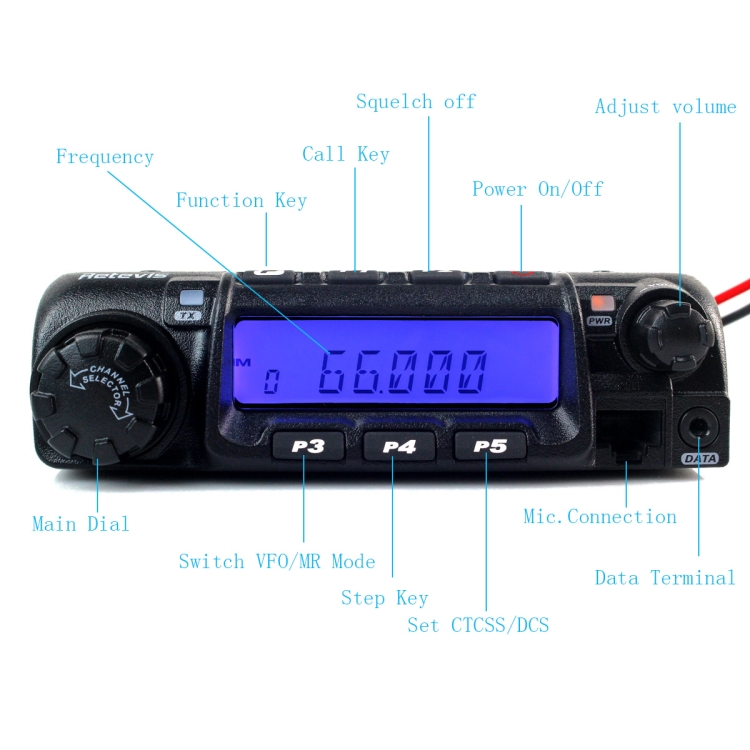

5. Five programmable multi-function keys, various shortcut operations can be set according to different requirements
6. Working temperature -20–+60 degrees Celsius
7. Rated voltage:13.8V DC+/-15%
8. Output power: about 45W
9. Transmitting frequency range: 66-88MHz
10. Memory channel: 200
11. Channel spacing: 25k (wide band) / 20k (mid band) 12.5k (narrow band)
12. High/low TX power: 60W/25W/10W(VHF)
13. Channel step: 5 / 6.25 / 10 / 12.5 / 15/20/25/30 / 50kHz
14. Frequency stability: +/-2.5ppm
15. Adjacent channel selectivity (w / n): 60dB 12.5kHz / 70dB 25kHz
16. With busy lock, scan, COMP, monitoring, TOT, power saving, keyboard lock and other functions
17. Battery voltage display
18. 0-9 SQL level setting
19. Repeater offset shift
20. Dimensions: 145x47x190mm
21. Weight: 966g

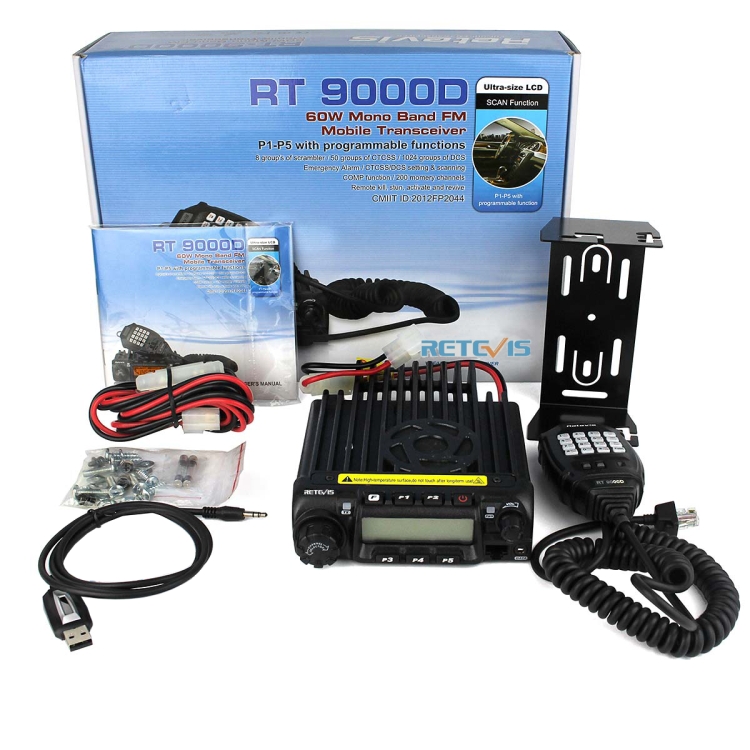

22. The product includes: 1x host, 1x power cord, 1x handheld speaker microphone, 1x a pack of screws and accessories, 1x programming cable, 1x user manual
Specification:
|
General
|
| Frequency Stability |
2.5ppm |
| Channel Spacing |
25k (wide band) / 20k (mid band) 12.5k (narrow band) |
| Frequency Step |
5kHz, 6.25kHz, 10kHz, 12.5kHz, 25kHz, 20kHz |
| Working Temperature |
-20C to 60C |
| CTCSS / DCS |
50 CTCSS / 1024 sets of DCS codes |
|
|
Package Include
|
| Package Contents |
1 x Walkie Talkie
1 x User Manual
1 x Cable
1 x Screw Set
1 x Microphone & Speaker |
|
|
Package Weight
|
| One Package Weight |
2.05kgs / 4.51lb
|
| One Package Size |
34cm * 25cm * 9cm / 13.39inch * 9.84inch * 3.54inch
|
| Carton Weight |
9.12kgs / 20.11lb
|
| Carton Size |
34cm * 25cm * 36cm / 13.39inch * 9.84inch * 14.17inch
|
| Loading Container |
20GP: 871 cartons * 4 pcs = 3484 pcs
40HQ: 2023 cartons * 4 pcs = 8092 pcs
|
|
