1. Frequency range: 144 / 430MHz (136-174 MHz & 400-470MHz)
2. Impedance: 50 ohms
3. Power: 70 watts
4. Gain: 2.15 / 3.5dBi

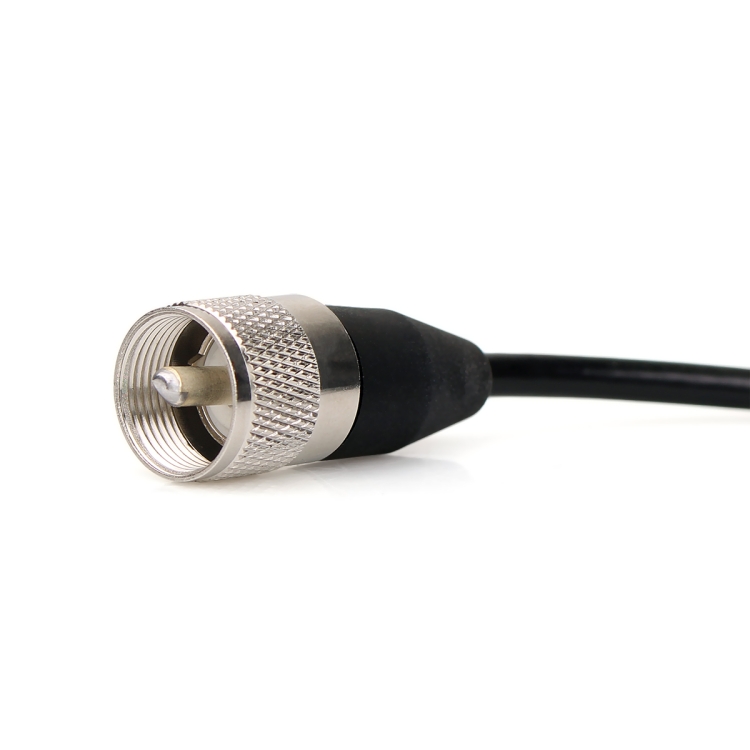

5. Connector type: SL16 / PL259
6. Coaxial cable type: RG58 C / U
7. Coaxial cable length: 3.9m
8. Height (magnet and antenna): 479mm
9. Chassis diameter: 90mm
8. Weight (magnet and antenna): 550g

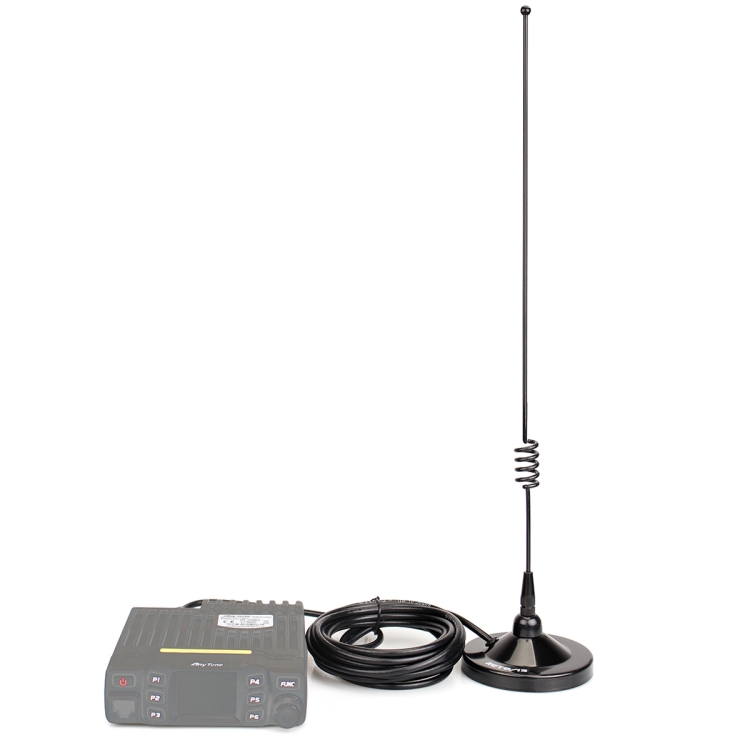

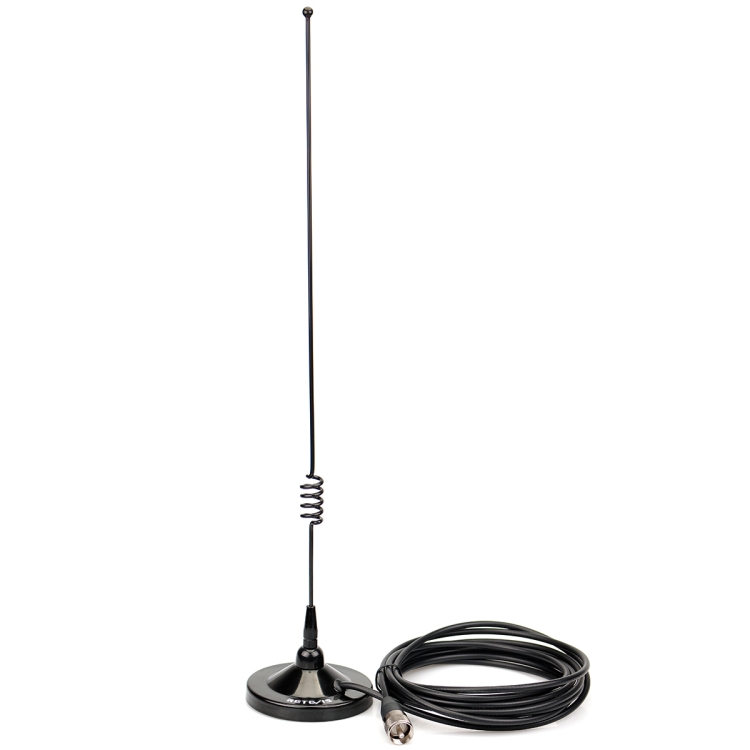

9. This set is a suction cup + antenna set, the suction cup is equipped with a 3.9m long feeder, which is easy to use
10. Applicable to the antenna interface of the current mainstream car radio

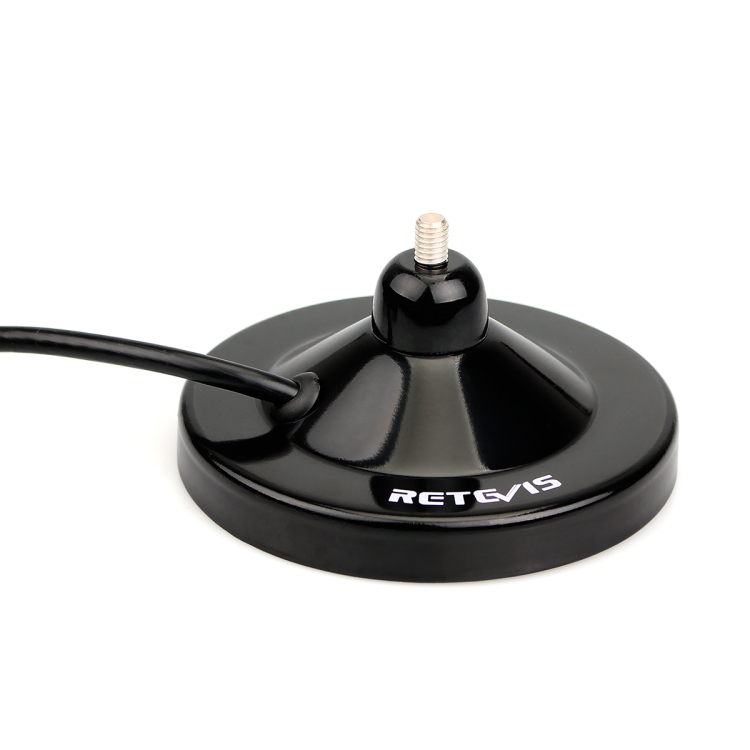

11. The bottom of the suction cup is a powerful magnet, which can be attached to the car body, usually on the roof or the trunk.
12. The antenna is used to receive or transmit electromagnetic wave signals
13. The feeder is also called a cable, and the feeder of the car station is also called a coaxial cable, which connects the car radio and the antenna
Specification:
| Package Weight |
| One Package Weight |
0.70kgs / 1.55lb |
| One Package Size |
46cm * 14cm * 5cm / 18.11inch * 5.51inch * 1.97inch |
| Carton Weight |
3.76kgs / 8.29lb |
| Carton Size |
47cm * 25cm * 16cm / 18.5inch * 9.84inch * 6.3inch |
| Loading Container |
20GP: 1418 cartons * 4 pcs = 5672 pcs
40HQ: 3292 cartons * 4 pcs = 13168 pcs |
|
