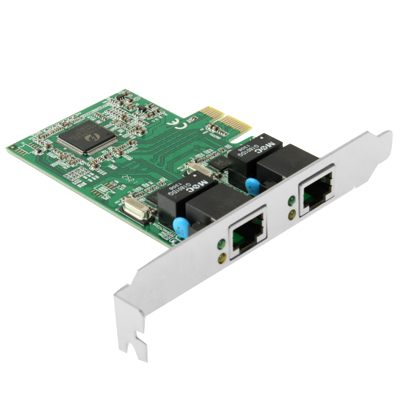

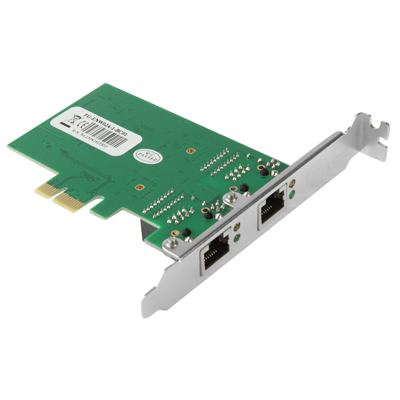

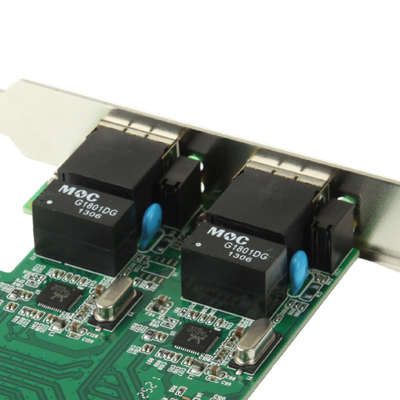

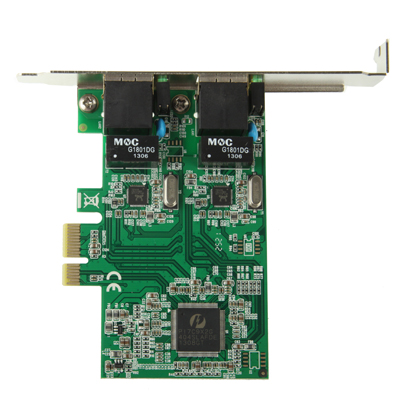

Features
1. Two Gigabit Ethernet ports (RJ45 x 2)
2. Complies with PCI Express Revision 1.1
3. A high performance 1000BASE-T Ethernet controller card
4. Backward compatible to 10/100BASE-T networking
5. 10/100/1000Mbps data rate auto negotiation operation
6. Compatible to existing CAT-5 UTP cabling
7. Fully compliant with IEEE 802.3, 802.3u and 802.3ab
8. Supports full duplex flow control (IEEE 802.3x)
9. Supports IEEE 802.1P layer 2 Priority Encoding
10. Supports IEEE 802.1Q VLAN tagging
11. Crossover Detection and Auto Correction operation
12. Supports WOL (Wake-On-LAN) function
13. Supports both Standard-Profile and Low-Profile computer chassis
System Requirements
1. Windows ME,98SE, 2000, XP, Vista, 7 and 8 32-/64-bit
2. Windows Server 2003, 2008 and 2012 32 -/64-bit
3. Linux, MAC OS and DOS
4. PCI Express-enabled system with an available PCI Express slot
Specification:
|
General
|
| Support System |
Windows 2000, Windows XP, Windows 98SE, Windows Vista, Windows ME, Windows 7, Windows 8, Linux, Mac OS |
| Size |
8.7cm x 12cm x 1.8cm |
|
|

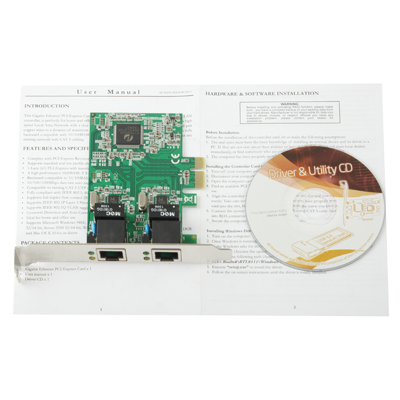

Package Include
|
| Package Contents |
1 x User Manual
1 x CD Driver |
|
|
Package Weight
|
| One Package Weight |
0.20kgs / 0.44lb
|
| One Package Size |
18cm * 14cm * 4cm / 7.09inch * 5.51inch * 1.57inch
|
| Carton Weight |
6.40kgs / 14.11lb
|
| Carton Size |
42cm * 30cm * 38cm / 16.54inch * 11.81inch * 14.96inch
|
| Loading Container |
20GP: 556 cartons * 40 pcs = 22240 pcs
40HQ: 1292 cartons * 40 pcs = 51680 pcs
|
|
Reviews
There are no reviews yet.
