1. The torque is increased by 3 times, and the noise is reduced by 50%.
2. The mounting components adopt a quick release structure, making the focus more efficient and reliable
3.MAX torque: 1.0 N m (8V)
4.MAX speed: 180 rpm (8V)
5. Quiescent current: 50mA (5V)
6. Stall current: 2.8A (8V)
7. Working voltage: 6-17.6V
8. Noise: 45 decibels
9. Number of gear teeth: 30
10. Modulus: 0.8
11. Working environment temperature: minus 20-45 degrees Celsius
12. Mounting conduit: 12 mm
13. Dimensions: 8 x 5 x 3.6 cm
14. Weight: 108 grams
15. Compatible products: DJI RS 3 Pro, DJI RS3, DJI RS2, DJI RSC 2

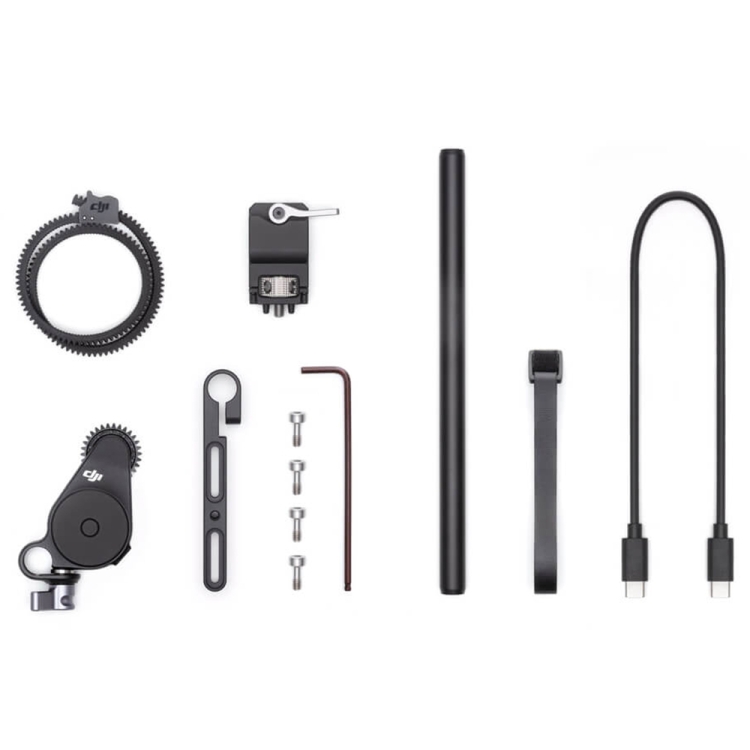

Packing list:
– Follow focus motor (2022) × 1
-Installation component set × 1
-Follow focus rack × 1
– Camera control cable (USB-C, 30cm) × 1
-M4 screws (10 mm) × 4
– Wrench (3 mm) × 1
-Lens fixing strap × 1
Specification:
|
General
|
| Compatible with |
DJI:
RS 3
, RS 3 Pro
, RSC 2
, RS 2
|
|
|
Package Weight
|
| One Package Weight |
0.26kgs / 0.57lb
|
| One Package Size |
14cm * 10cm * 5cm / 5.51inch * 3.94inch * 1.97inch
|
| Carton Weight |
46.28kgs / 102.03lb
|
| Carton Size |
60cm * 60cm * 64.3cm / 23.62inch * 23.62inch * 25.31inch
|
| Loading Container |
20GP: 115 cartons * 146 pcs = 16790 pcs
40HQ: 267 cartons * 146 pcs = 38982 pcs
|
|
