Introduction

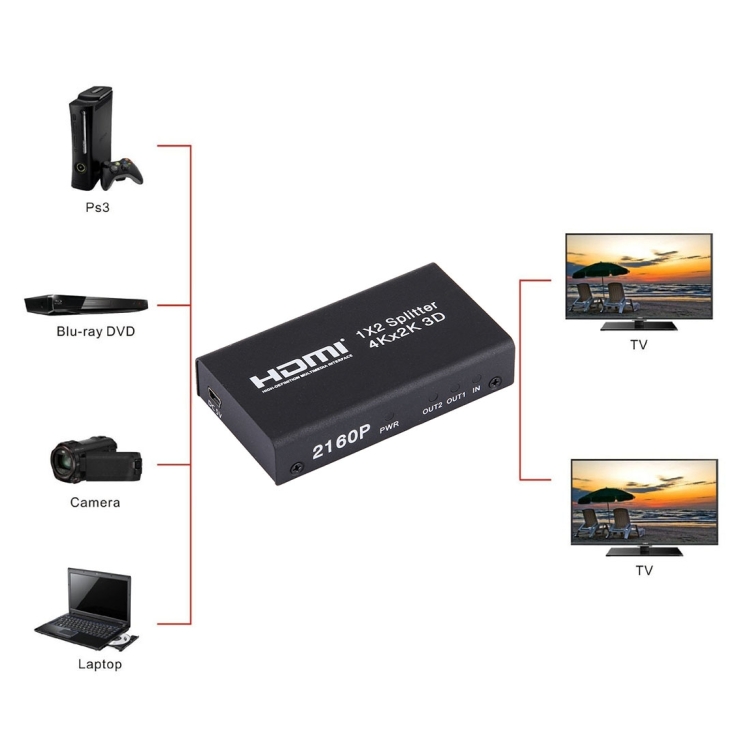

This 1×2 HDMI splitter can connect Set-Top-Box, DVD player, laptop, PS3, PS4, XBOX, HDTV or other HD devices to two display devices via HDMI output interfaces and let the two display devices show the same picture.
Features
1. 1 x HDMI 1.4b input, 2 x HDMI 1.4b output.
2. HDMI resolution up to 4K/30fs, support 3D.
3. Support 24 bit/Deep color 30 bit/36 bit.
4. Support Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC.
5. Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD
6. Support signal Re-Timing.
7. Use AWG26 HDMI 1.4b standard cable, input transmission distance up to 15m, output transmission distance up to 25m.
8. No loss of signal.
9. Power by DC 5V/1A external power adapter.
Specification:
|
General
|
| Input Port |
AC 100-240V 50/60Hz (Charger) |
| Output Port |
DC 5V 1A (Charger) |
| Interface |

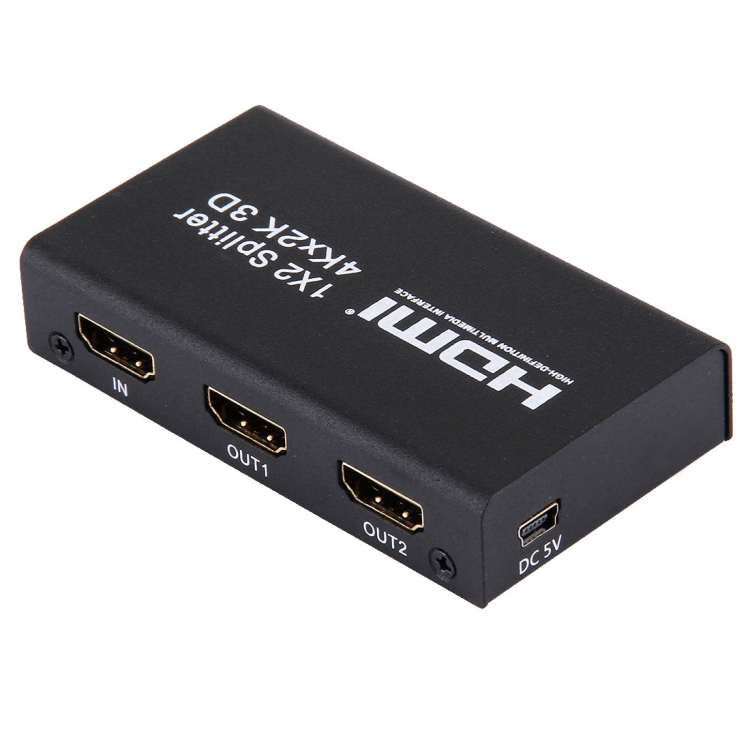

DC IN, 1 x HDMI IN, 2 x HDMI Out |
| HDMI Resolution |
up to 4K/30fs |
| Video Color Format |
24bit, 30bit, 36bit |
| Video Bandwidth |
300MHz/10.2 Gbps |
| HDMI Audio Format |
DTS-HD, Dolby-TrueHD, LPCM 7.1CH, DTS, Dolby-AC3, DSD |
| Input Cable Distance |
<=15m AWG26 HDMI Standard Cable |
| Output Cable Distance |
<=25m AWG26 HDMI Standard Cable |
| Input/ Output TMDS Signal |
0.5~1.5Vp-p(TTL) |
| Input/ Output DDC Signal |
5Vp-p(TTL) |
| Working Current |
600mA (Max) |
| Operating Temperature |
-10 to 55 Degree Celsius |
| Storage Temperature |
-20 ~ 60 Degree Celsius |
| Operating Humidity |
10 ~ 90 Percent RH (Non-condensing) |
| Storage Humidity |
5 ~ 95 % RH (Non-condensing) |
|
|

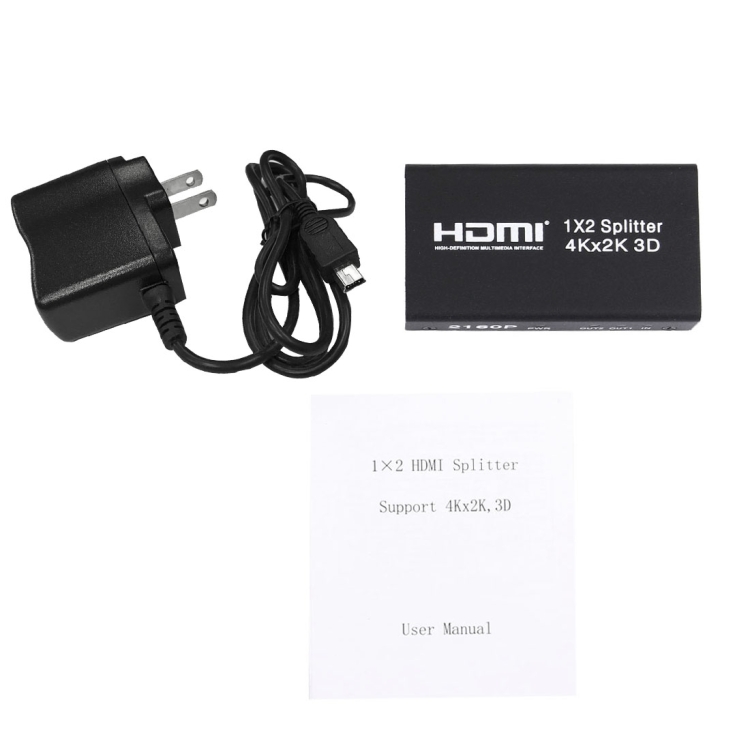

Package Include
|
| Package Contents |
1 x Power Adapter
1 x User Manual
1 x HDMI Splitter |
|
|
Package Weight
|
| One Package Weight |
0.29kgs / 0.64lb
|
| One Package Size |
17.2cm * 12.1cm * 5.9cm / 6.77inch * 4.76inch * 2.32inch
|
| Carton Weight |
11.00kgs / 24.25lb
|
| Carton Size |
51cm * 32cm * 37cm / 20.08inch * 12.6inch * 14.57inch
|
| Loading Container |
20GP: 441 cartons * 40 pcs = 17640 pcs
40HQ: 1025 cartons * 40 pcs = 41000 pcs
|
|
