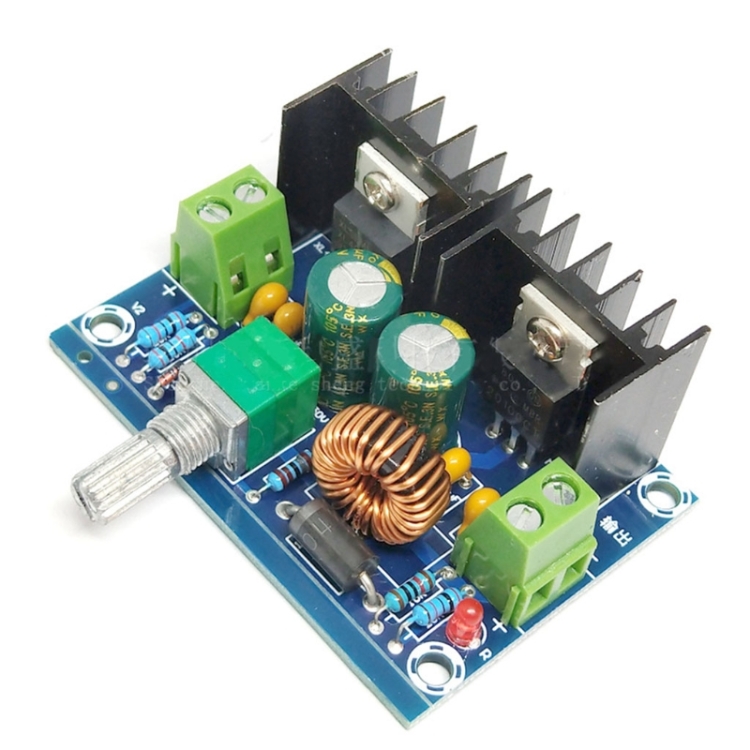

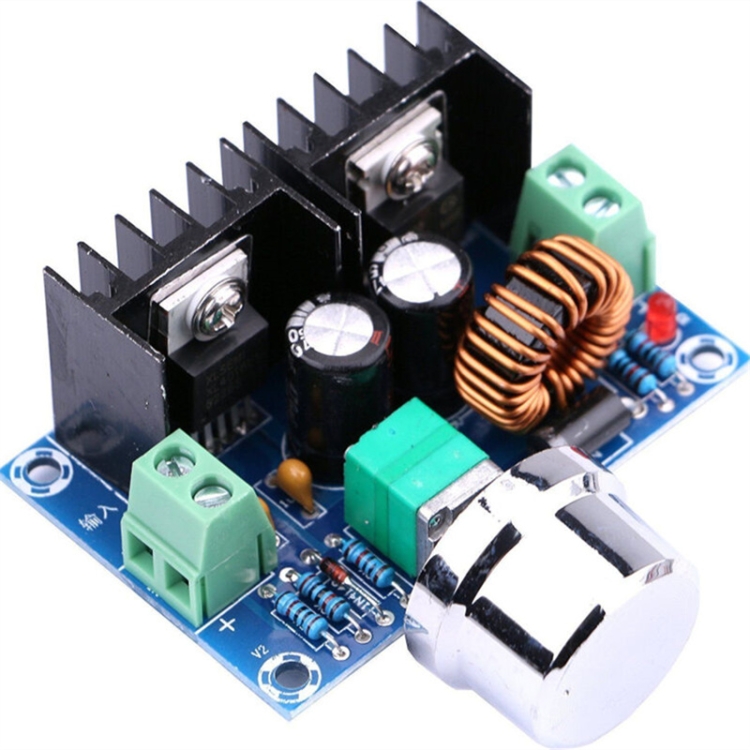

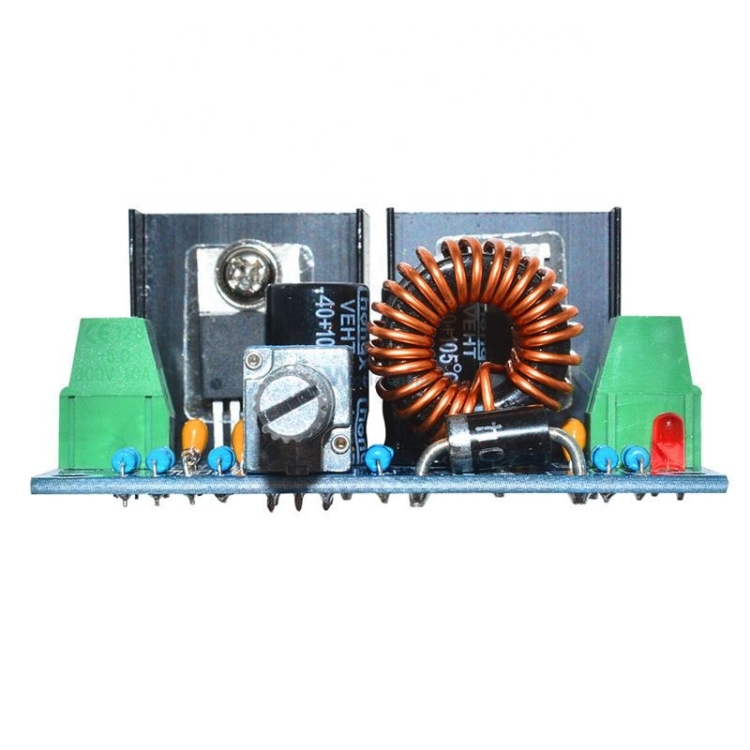

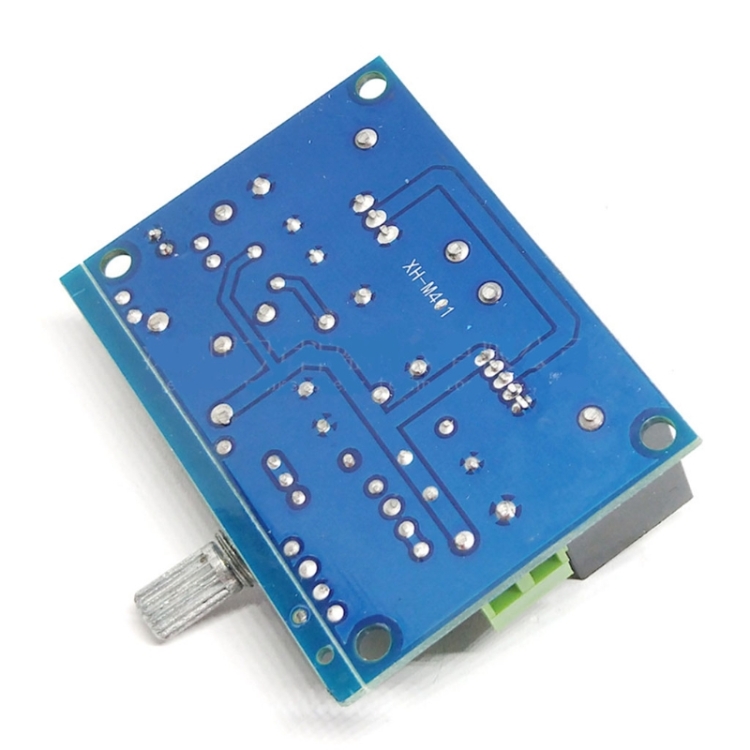

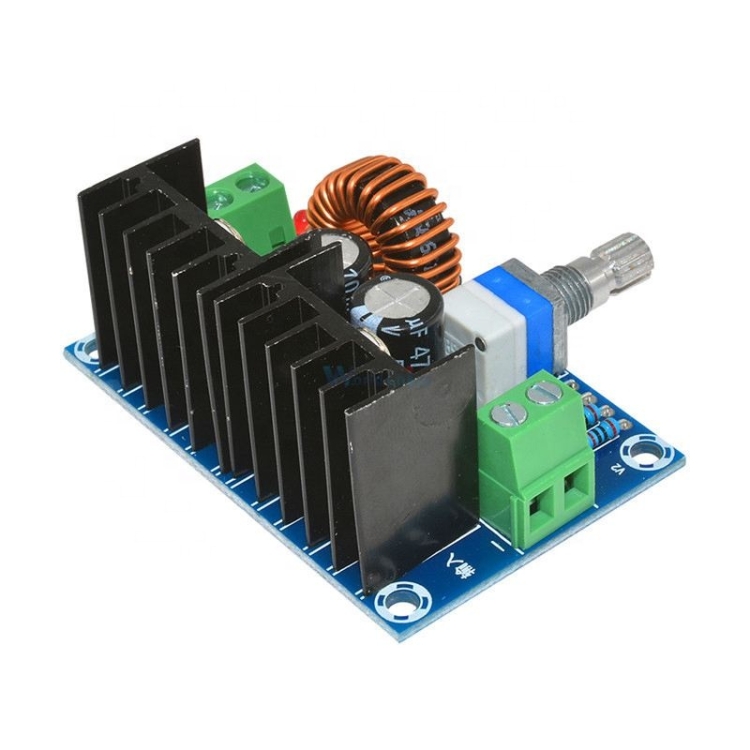

1. Using XL4016 switch voltage regulator chip, with MBR20100 dual rectifier, the input voltage can reach 40V and output 1.25~36V continuously adjustable
2. 180KHz fixed frequency PWE step-down (step-down) DC/DC converter
3. High efficiency and up to 8A load driving capacity
4. Low ripple and excellent line and load regulation ability
5. Built-in frequency compensation and fixed frequency oscillator
6. Built-in over-current and short-circuit protection functions
7. Built-in thermal shutdown function, output protection function, output overvoltage protection
8. Voltage regulation method: PWM modulation

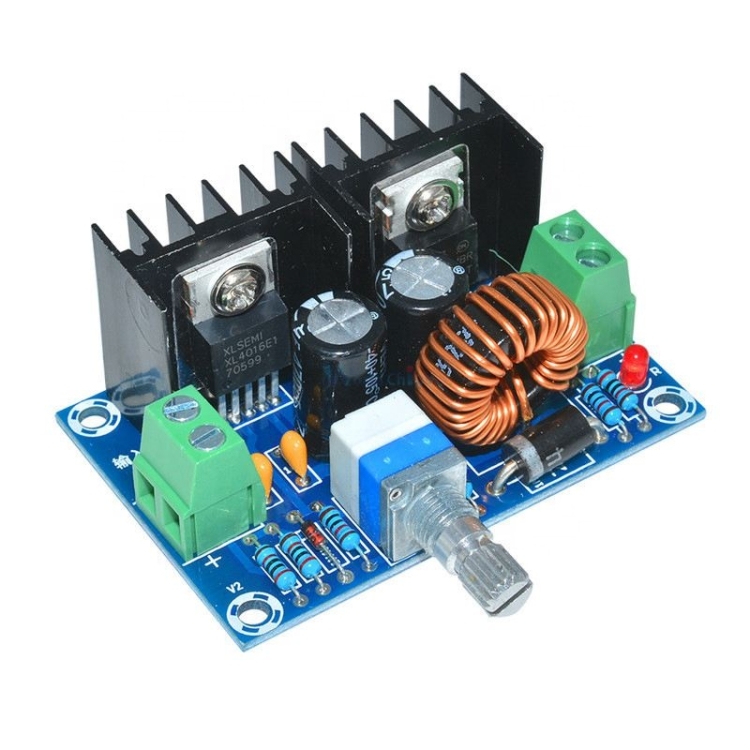

9. Chip model: XL4016E1
10. Type: DC/DC power supply module
11. Input voltage: DC4-40v
12. Output range: DC1.25-36v
13. Rated current: 8A
14. Rated power: 200w
15. Conversion efficiency: 94%
16. Switching efficiency: 180Khz

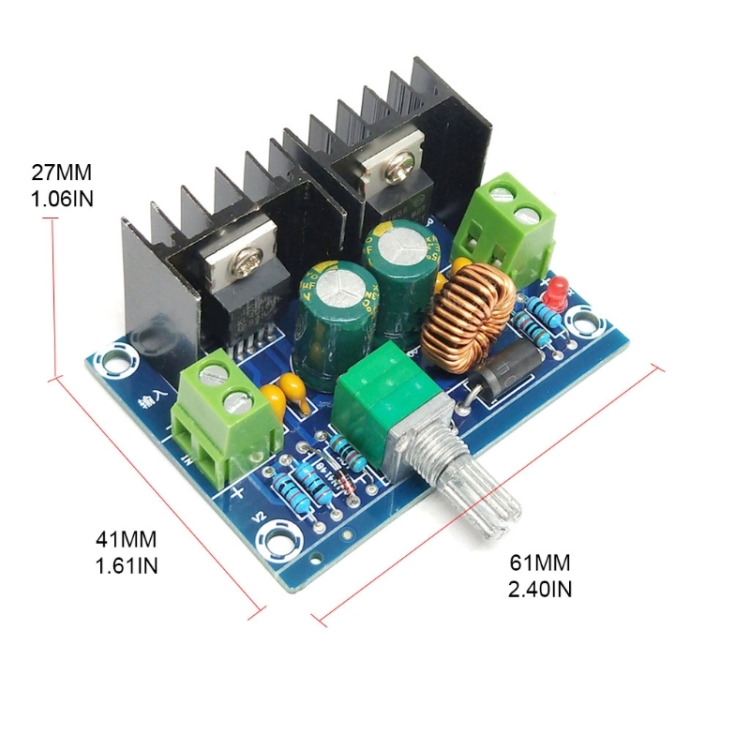

17. Size: 61x41x27mm
Specification:
| Package Weight |
| One Package Weight |
0.04kgs / 0.10lb |
| One Package Size |
10cm * 6cm * 5cm / 3.94inch * 2.36inch * 1.97inch |
| Carton Weight |
9.00kgs / 19.84lb |
| Carton Size |
42cm * 32cm * 52cm / 16.54inch * 12.6inch * 20.47inch |
| Loading Container |
20GP: 381 cartons * 200 pcs = 76200 pcs
40HQ: 885 cartons * 200 pcs = 177000 pcs |
|
