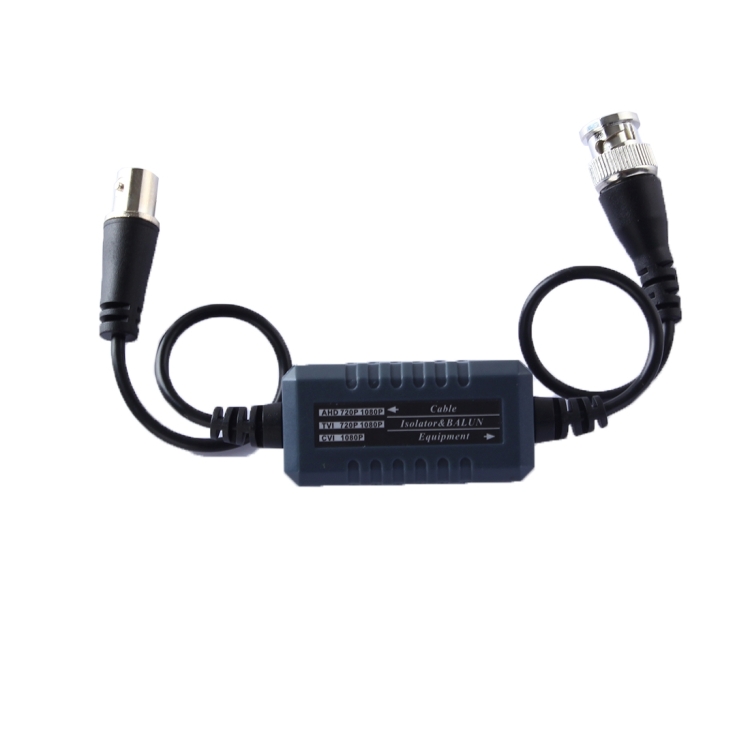

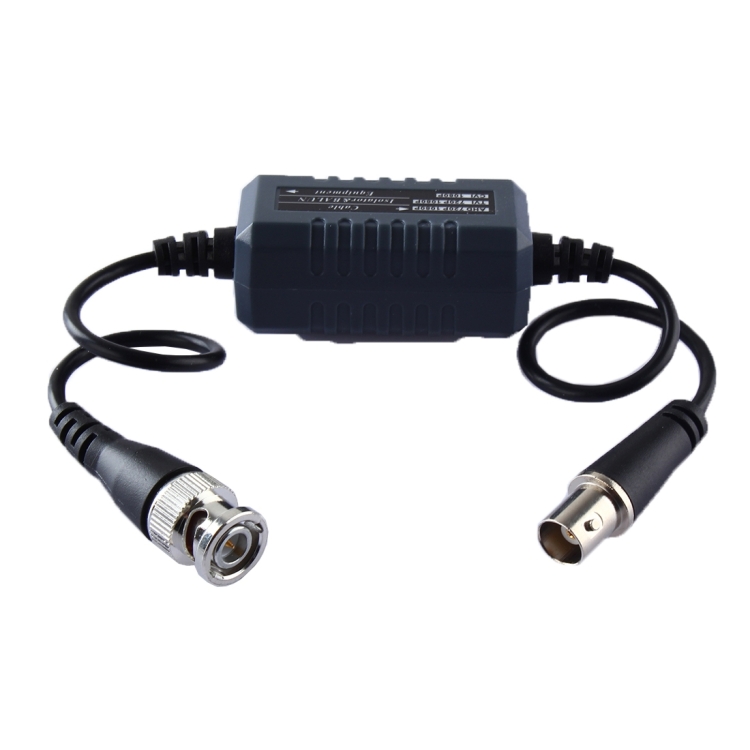

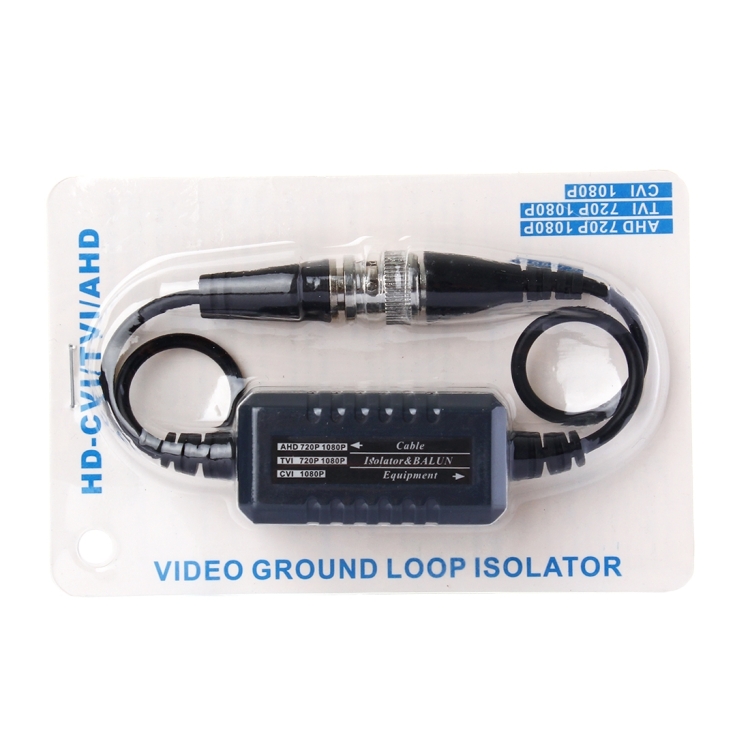

HD CVI/TVI/AHD Coaxial Ground Loop Isolator Video Balun BNC Male to Female Anti-jamming

$23.63

Compare
Add to wishlist
SKU: CVB0013 Category: Tags: , ,
Description

1. Compatible with CVI 1080P, TVI 720P/1080P, AHD 720P/1080P, it’s not suitable for CVI 720P
2. BNC male to BNC female with mini cable 18cm on both sides
3. Passive,no power required
4. Prevent video-signal distortion caused by video ground loops
5. Eliminates picture tearing, cross talk and rolling
6. Prevent power cables laid bu others interfering with the cctv system
7. Built in video filter, perfect to work with dvr to immunity dvr interference, for interference rejection
8. Built in TVS(Transient Voltage suppressors) for surge protection.
9. Insertion Loss: 0.5dB
10. Frequency Response: 20Hz-60MHz, +0/-4dB
11. Resistance: 75 ohm
12. Isolation Voltage: 600VDC(mini)
13. Transient Voltage Suppressors: 12 Vrms

Specification:
General
Material ABS
Input Impedance 75 ohms
Cable Length 18cm*2
Size 52*26*22mm
Weight 43g
Package Weight
One Package Weight 0.07kgs / 0.15lb
One Package Size 13cm * 9cm * 2cm / 5.12inch * 3.54inch * 0.79inch
Qty per Carton 200
Carton Weight 12.20kgs / 26.90lb
Carton Size 47cm * 28cm * 42cm / 18.5inch * 11.02inch * 16.54inch
Loading Container 20GP: 482 cartons * 200 pcs = 96400 pcs
40HQ: 1120 cartons * 200 pcs = 224000 pcs

Additional information
Weight 0.070 kg
Dimensions 13.0 × 9.0 × 2.0 cm
