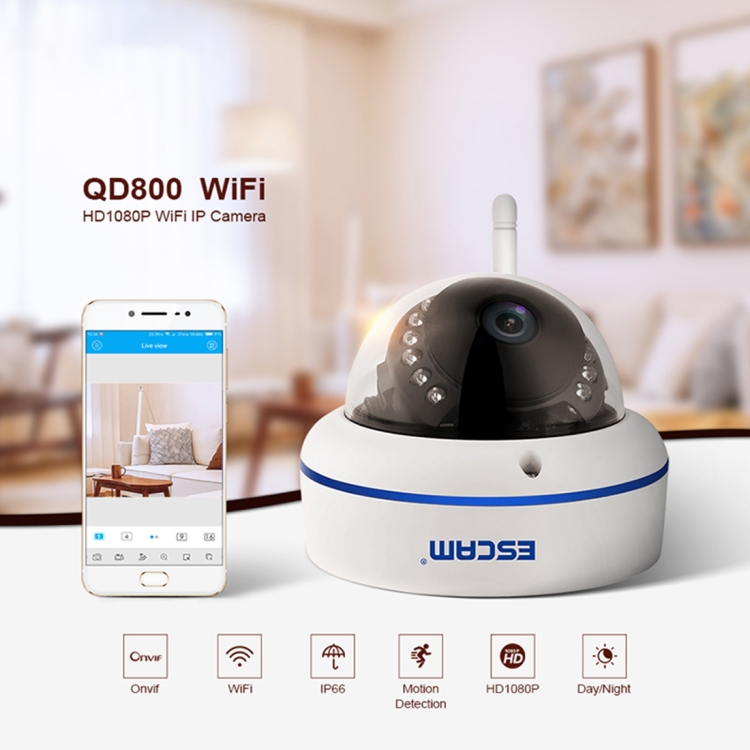

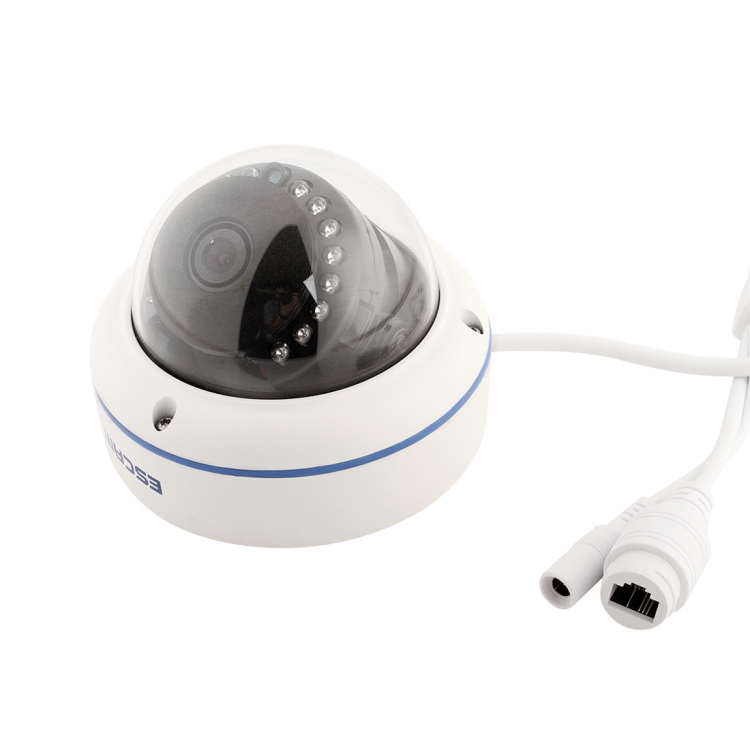

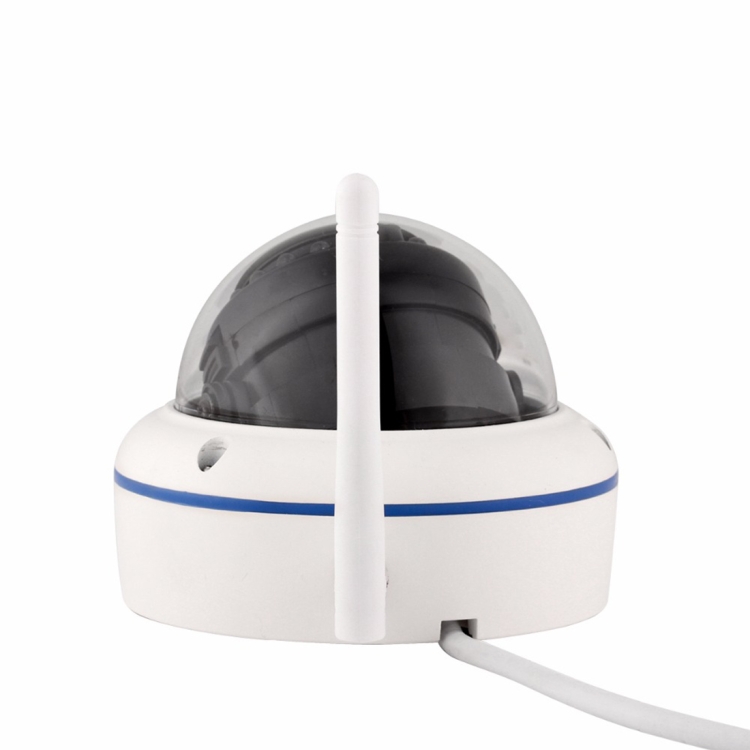

1. 2MP HD 1080P camera, 1/2.7 inch CMOS sensor, 3.6mm lens, 75.7 degree wide view angle.
2. Support private cloud protocol, it can be added to PVR204 or PVR208 remotely or locally.

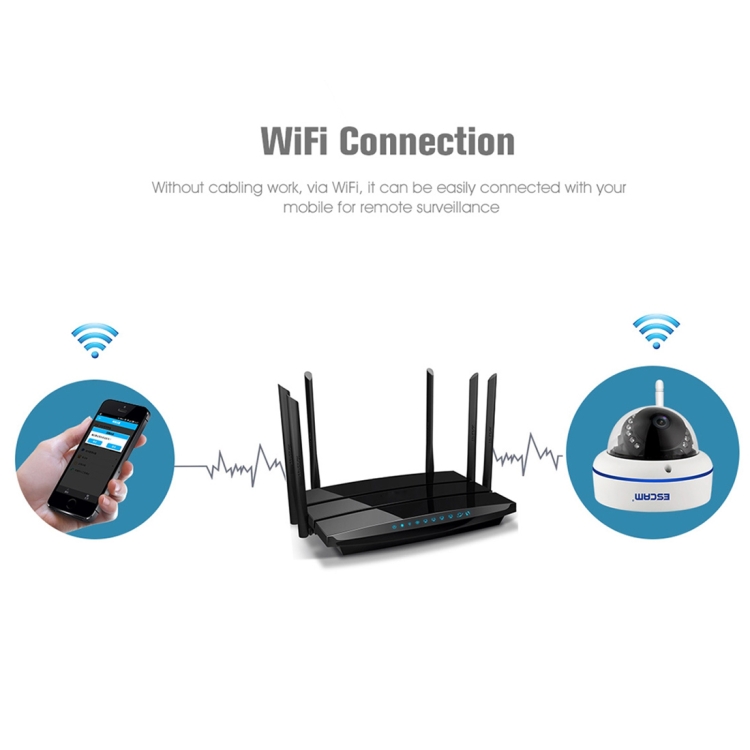

3. Support WiFi 802.11b/g/n and AP point.
4. Support Day/Night,IR distance 10m,make your night view as daytime.
5. Support Motion Detection/email alarm/app push.
6. Support TF card max up to 64GB (not included).
7. IP66 waterproof, can be used indoor or outdoor.

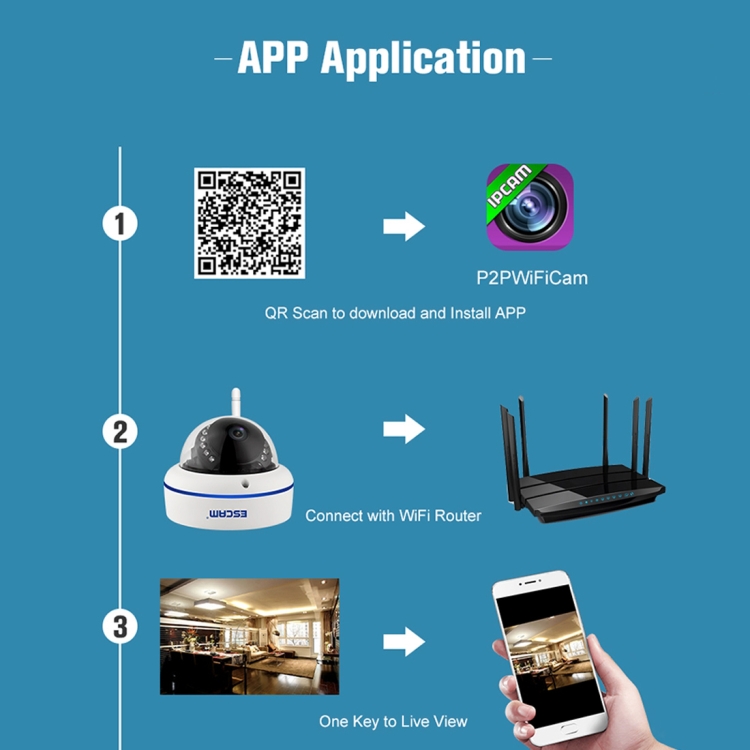

8. Support CMS viewing, APP viewing and browser viewing.
9. Support onvif, compatible with other devices.
Specification:
|
General
|
| Power Depletion |
<6W(Camera) |
| Performance |
Motion detection, Night Vision, Privacy Masking, Two Way Audio |
| Memory |
TF Card, up to 64GB (not included) |

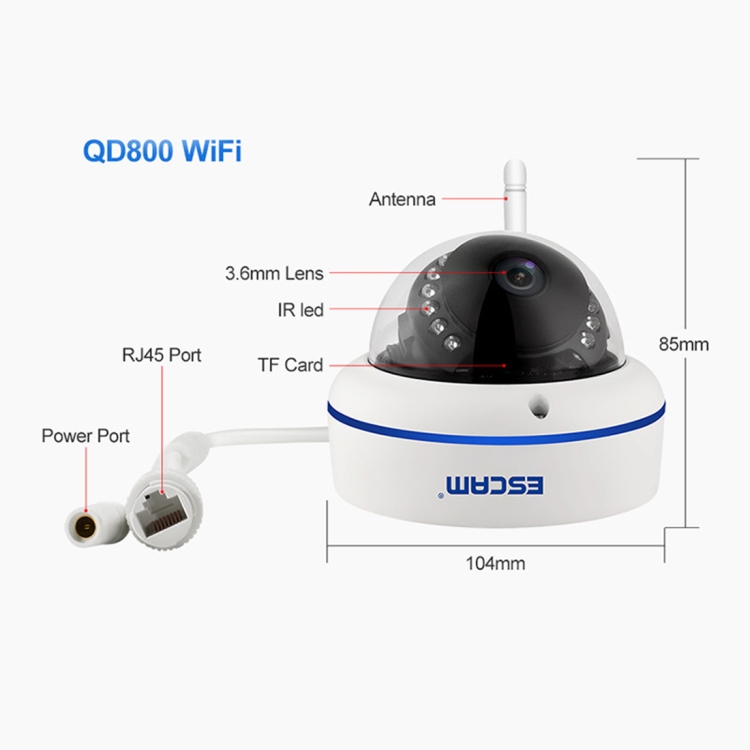

| Interface |
RJ45, TF card slot |
|
|
Network
|
| Network Interface |
RJ45 10/100MB Ethernet interface |
| Wireless |
WiFi 802.11 b/g/n, 2.4GHz |
| Protocol |
DDNS, NTP, SMTP, UPNP, DHCP, PPPOE, IPv4, FTP, RTSP, HTTP, DNS, TCP/IP |
| IP Address |
Dynamic IP and static IP |
| PC Client and browser |
iPhone, iPad, Android, Windows PC |
|
|
System / Hardware
|
| Mobile Access |
Android, iPhone OS, iPad |
| Dynamic Range |
Digital wide dynamics |
| Sensor Size |
1/2.7 inch Progressive Scan |
| Lens |
3.6mm, 75.7 Degree View Angle |
| Electronic Shutter |
Auto/Manual, 1/25~1/10000s |
| Minimum Illumination |
Color: 0.1Lux/F1.2, B/W: 0.01Lux/F1.2 |
| Image Control |
Hue, Saturation, Brightness, Contrast, Sharpness Adjustment |
|
|
Media Format
|
| Video Compression Format |
H.264 |
| Video Bit rate |
64Kbps~12Mbps CBR/VBR adjustable |
| Frame Rate (FPS) |
50Hz: 25fps, 60Hz: 25fps |
| Main Stream |
1280 x 720, 1920 x 1080, 1080 x 960 |
| Sub Stream |
640 x 360, 352 x 288, D1 704*576 |
|
|
Night Vision
|
| Configuration |
15 infrared LEDs |
|
|
Physical Environment
|
| Environment |
Outdoor, Indoor |
| Operate Temperature |
-10 to 60 Degree Celsius |
| Working Humidity |
10 to 90 percent |
|
|

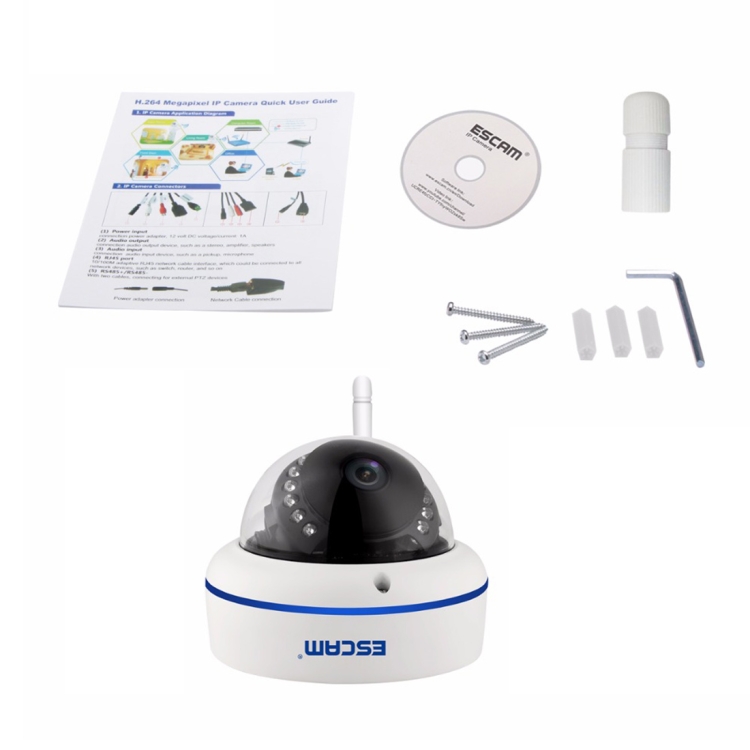

Package Include
|
| Package Contents |
1 x Camera
1 x Power Charger
1 x Screws Set |
|
|
Package Weight
|
| One Package Weight |
0.66kgs / 1.46lb
|
| One Package Size |
16cm * 16cm * 15cm / 6.3inch * 6.3inch * 5.91inch
|
| Carton Weight |
15.40kgs / 33.95lb
|
| Carton Size |
62cm * 33cm * 33cm / 24.41inch * 12.99inch * 12.99inch
|
| Loading Container |
20GP: 394 cartons * 24 pcs = 9456 pcs
40HQ: 916 cartons * 24 pcs = 21984 pcs
|
|
