Features
1. Home intelligence webcam: fool fun home intelligence monitoring, remote monitoring, easy to achieve APP video call intercom.
2. Plug and play: After the device is connected to the network, there is no need to apply for a domain name. You do not need to set port mapping. You can completely control the device through the APP. The home smart security starts from the mobile phone control.
3.APP Multi-function: set time zone, image flip (up/down/left/right), timing capture, alarm setting (alarm information push oriented APP account, directed mailbox, device beep, FTP), view wifi information, set defense zone, set storage, set recording information and other functions;
4. Network Adaptation: The device will select the most suitable code stream for transmission according to the current network conditions, and support IE browser and computer to watch, bringing a user experience.
5. Support humanoid tracking, currently supports 3 personal frames, when the screen appears several people at the same time, the device automatically tracks according to the maximum human form.
6. Support OSD overlay and OSD hidden features.
7. Device motion detection alarm mailbox push, support 1 mailbox push, multiple mailboxes to receive.

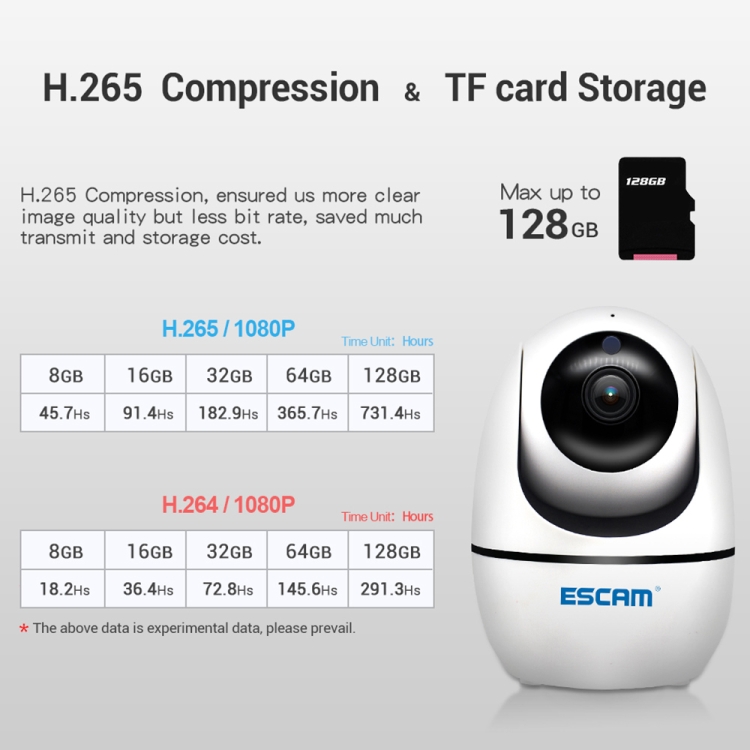

8. Default H.265 encoding, lower bit rate, clearer image quality, less bandwidth, and smoother image
9. Support Onvif standard protocol, compatible with most network hard disk recorders on the market.
Parameter

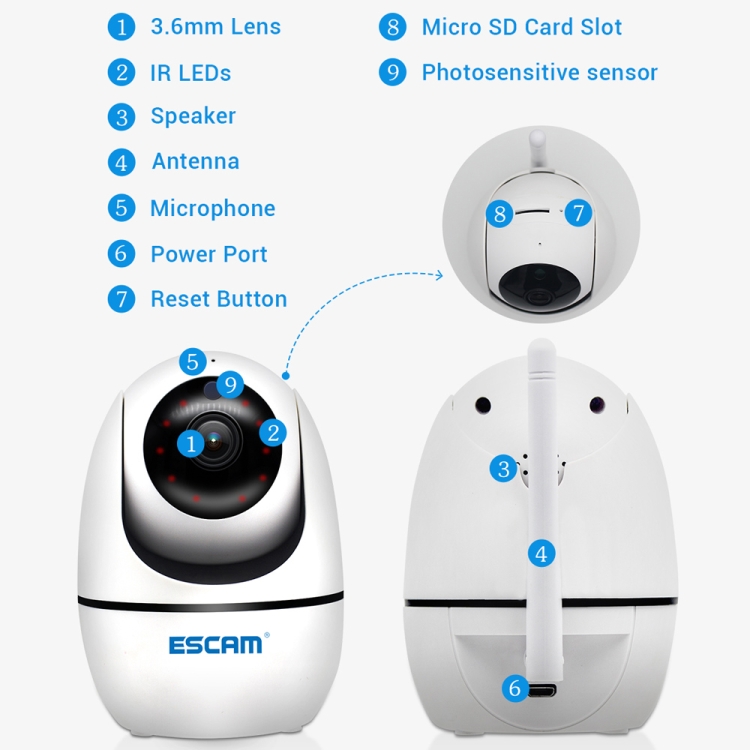

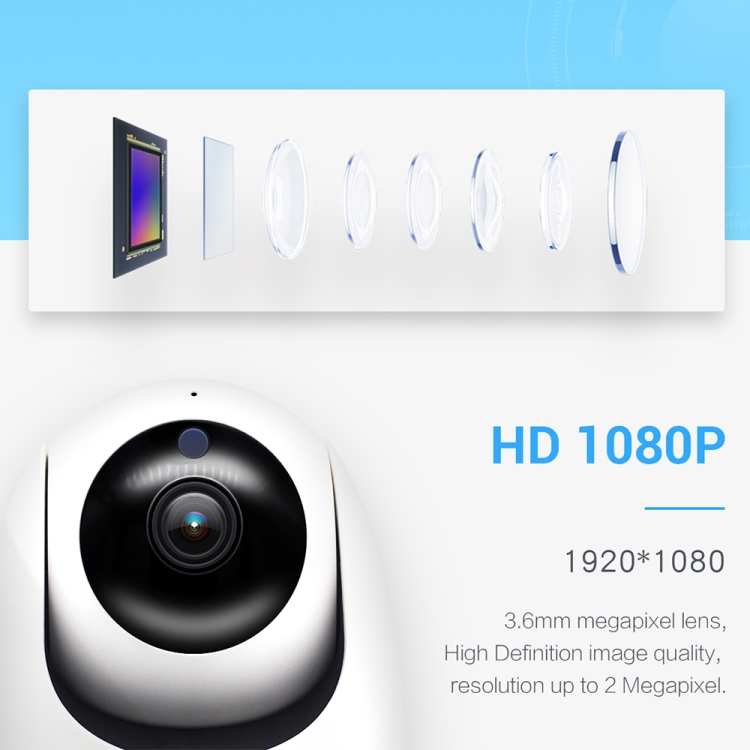

1. Sensor: 1/2.9 inch 2.0 Megapixel progressive can CMOS
2. Focal length: 3.6mm
3. Angle of View: 75.7 degrees

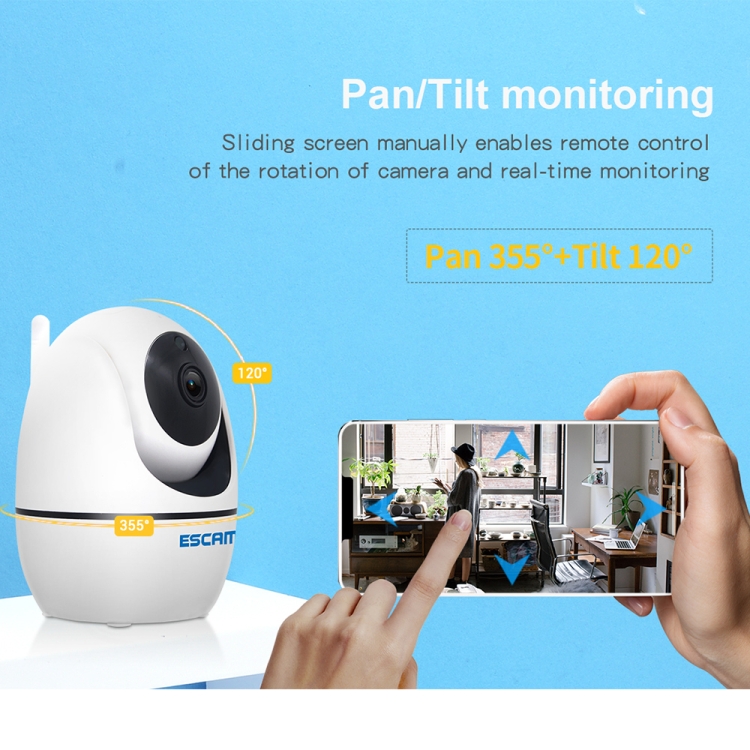

4. P/T function: Pan:355 degrees,Tilt:120 degrees
5. White Balance: auto white balance
6. Compression: H.264/H.265

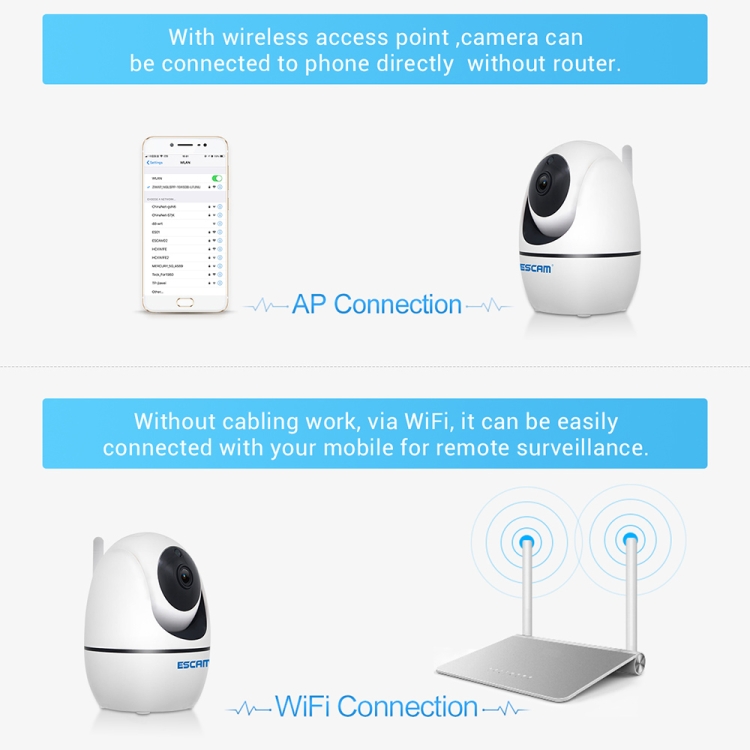

7. Wireless: support WiFi 802.11b/g/n, 2.4G band ; AP mode
8. Max user qty: 4
9. Client: iPhone, iPad, Android, Windows PC
10. Alarm detection: Humanoid detection and automatic tracking, motion detection , sound detection
11. Alarm action: Alarm recording, alarm capture, Email and FTP send pictures, APP push
12. TF card: support max to 64GB TF card
13. Power supply: DC5V
14. Power Consumption: <6W
15. Size: 8x9x10.5cm
Specification:
| General |
| Performance |
Motion detection, Night Vision |
| Memory |
TF Card, up to 64GB (not included) |
|
| Network |
| Wireless |
WiFi 802.11 b/g/n, 2.4GHz |
| Protocol |
DDNS, NTP, SMTP, UPNP, TCP, DHCP, PPPOE, IPv4, FTP, RTSP, IP, HTTP, DNS |
|
| System / Hardware |
| Sensor Size |
1/2.9 inch Progressive Scan |
| Pan/Tilt-Horizontal Angle |
355 degrees |
| Pan/Tilt-Vertical Angle |
120 degrees |
| Minimum Illumination |
Color: 0.1Lux/F1.2 |
|

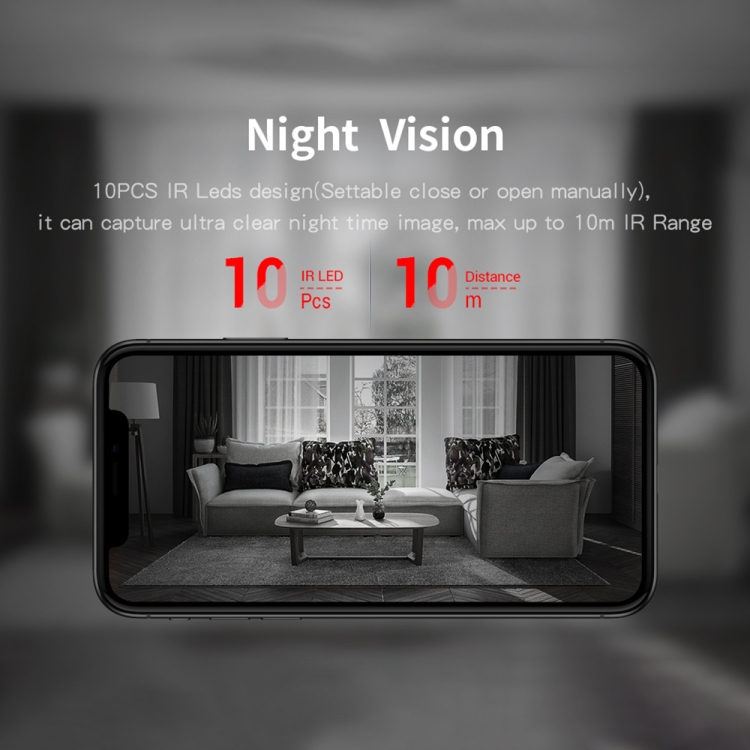

| Night Vision |
| Configuration |
10 infrared LEDs |
|
| Physical Environment |
| Operate Temperature |
-10 to 50 Degree Celsius |
| Working Humidity |
10 to 85 percent |
|
| Package Include |
| Package Contents |
1 x Camera
1 x USB Cable
1 x Power Adapter (US, UK, EU, AU Optional)
1 x User Manual
2 x Screws
1 x Reset Needle
2 x Plastic Expansion |
|
| Package Weight |
| One Package Weight |
0.63kgs / 1.39lb |
| One Package Size |
20cm * 15cm * 13cm / 7.87inch * 5.91inch * 5.12inch |
| Carton Weight |
10.80kgs / 23.81lb |
| Carton Size |
54cm * 32cm * 42cm / 21.26inch * 12.6inch * 16.54inch |
| Loading Container |
20GP: 367 cartons * 16 pcs = 5872 pcs
40HQ: 852 cartons * 16 pcs = 13632 pcs |
|
