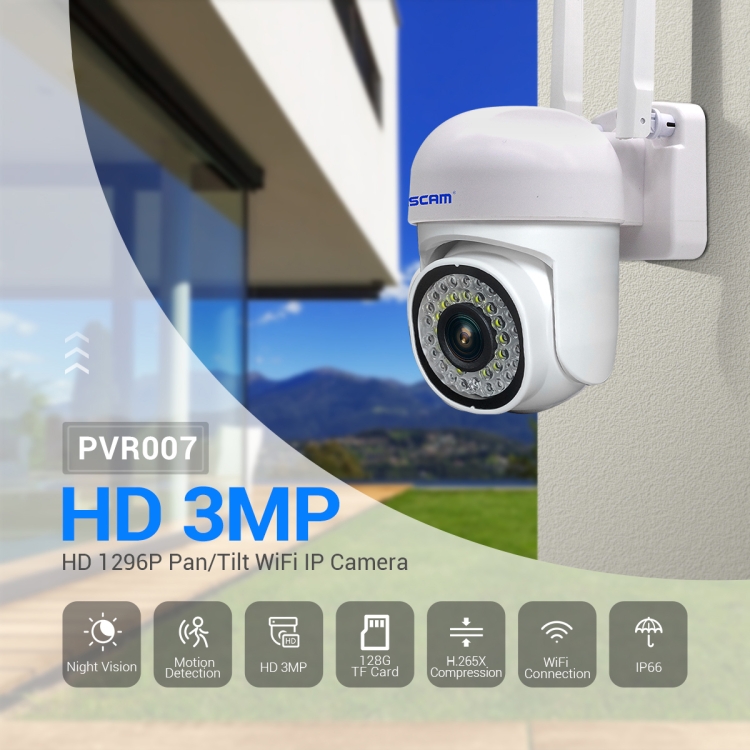

Features
1. 300W high-definition pixels, clear picture quality

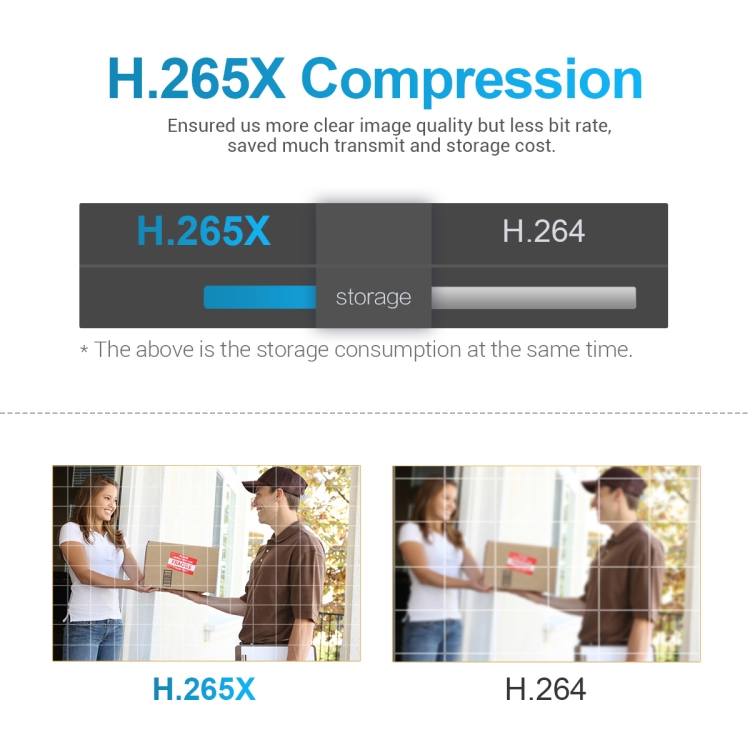

2. Standard H.265 video compression algorithm to meet the transmission of high-definition video in a narrow bandwidth network
3. Support motion detection alarm, APP message push, white light flashing and alarm sound warning
4. Support two-way voice intercom, echo cancellation, noise suppression

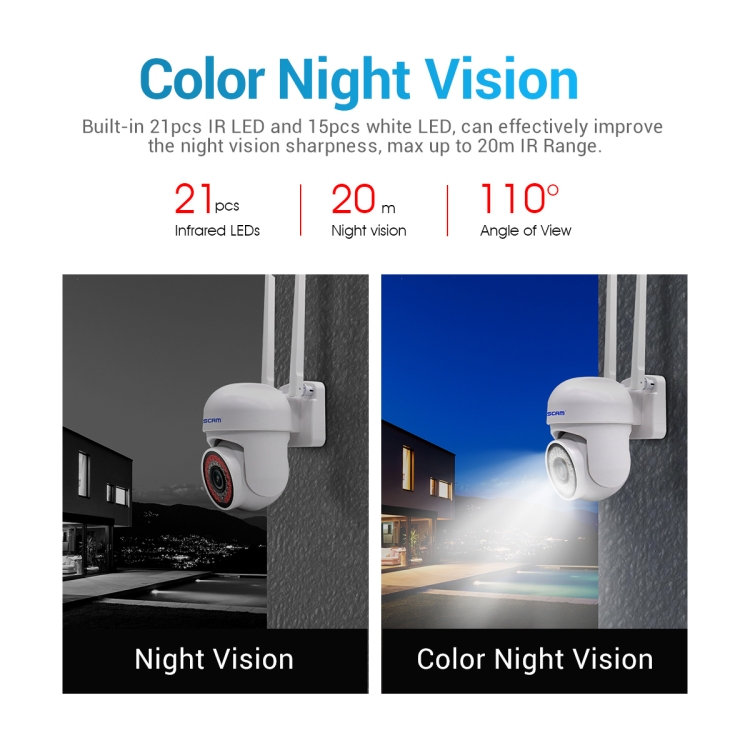

5. Intelligent night vision: 15 white lights, 21 infrared lights for night vision lighting, the night vision distance can reach 20 meters
6. Support 2.4G Wi-Fi (IEEE802.11b/g/n)

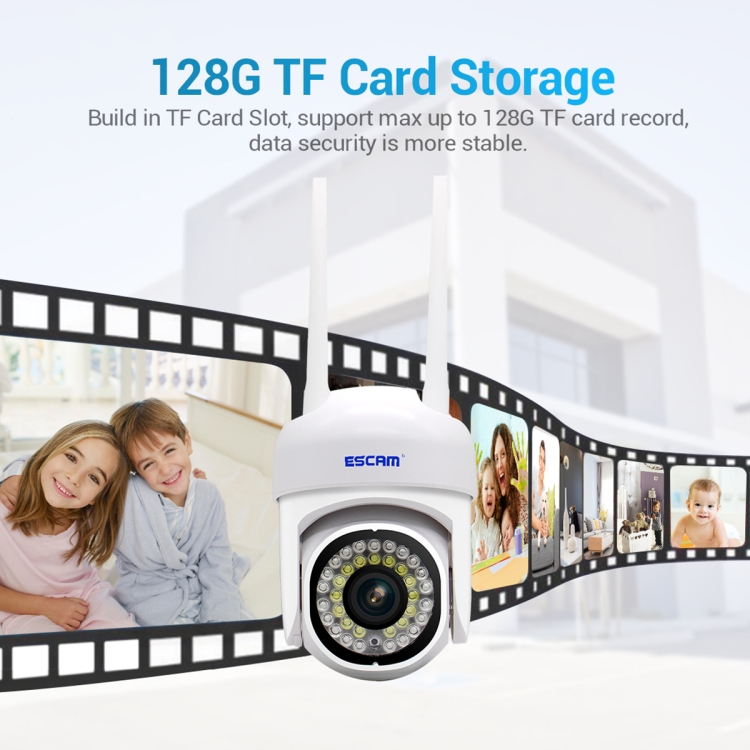

7. Support TF card storage (up to 128GB)

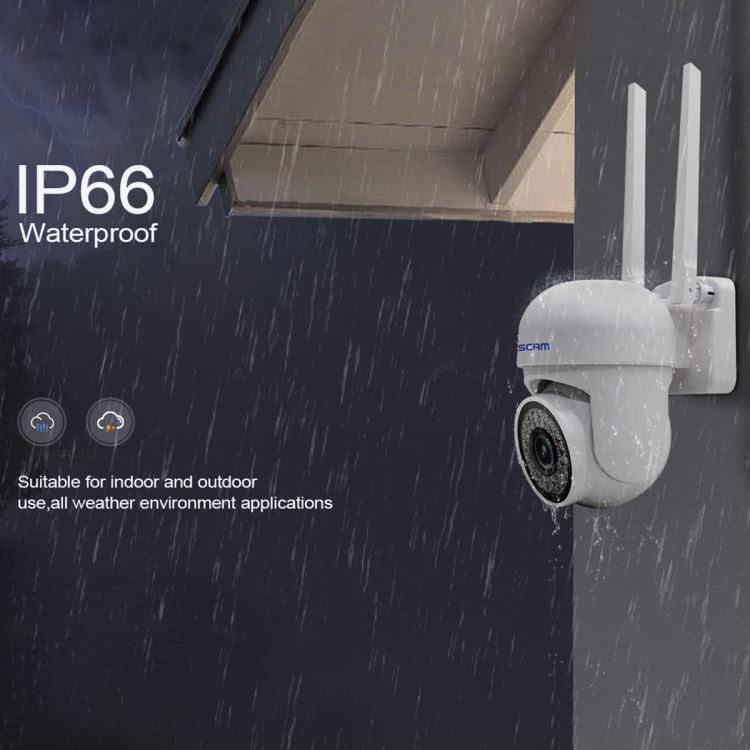

8. IP66 waterproof level, no fear of rain erosion
Parameters
1. Image sensor: 1/4 CMOS sensor

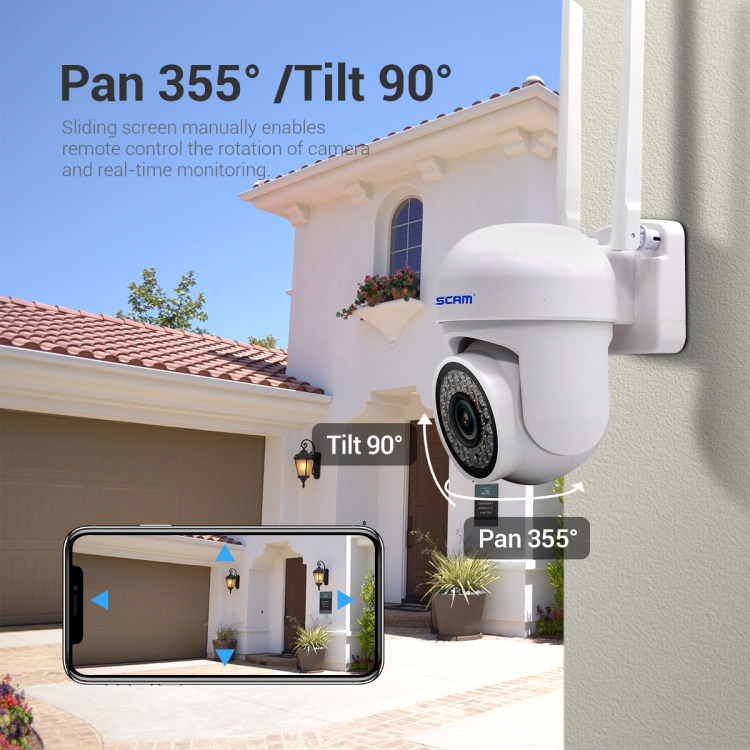

2. PTZ function: left and right 355 degrees, up and down 90 degrees
3. Digital noise reduction: support 3D noise reduction
4. Lens: 3.6mm
5. Viewing angle: 75.7 degrees
6. Compression: H.264
7. Resolution:
– Main stream: 1296P (2304×1296)
– Secondary stream: 720P(1280×720)
8. Video frame rate: 15fps (50HZ), 25fps (60HZ)
9. Wireless network: support WIFI 802.11b/g/n, 2.4G frequency band
10. Client: support iPhone / iPad / Android / Windows PC
11. Alarm trigger: motion detection alarm, sound detection alarm
12. Alarm actions: alarm recording, alarm capture, mobile APP push

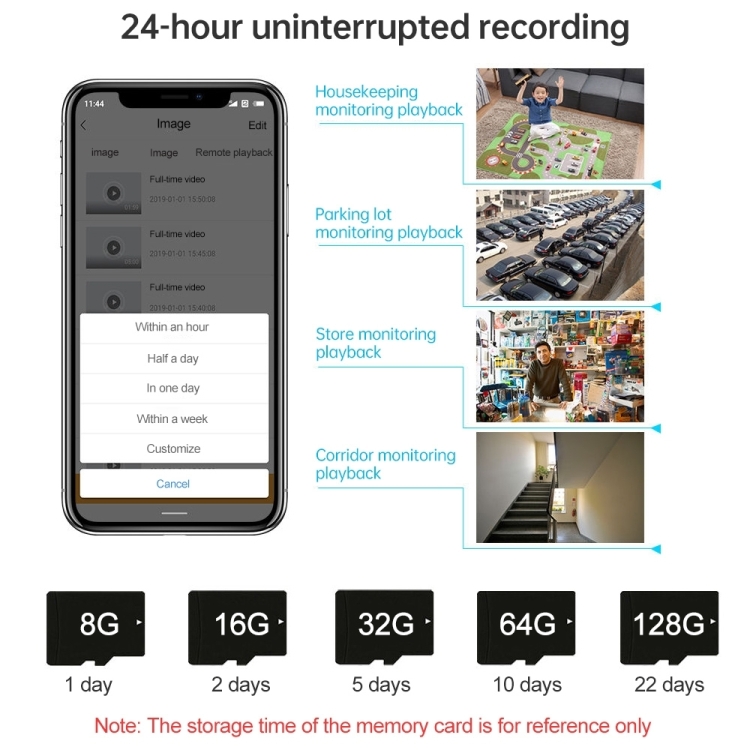

13. TF card: support, up to 128 GB TF card (micro SD)
14. Working environment: -10 degrees Celsius – +50 degrees Celsius, 10%~85%RH
15. Power supply: DC 5V
16. Power: less than 6W
17. APP: YIIOT

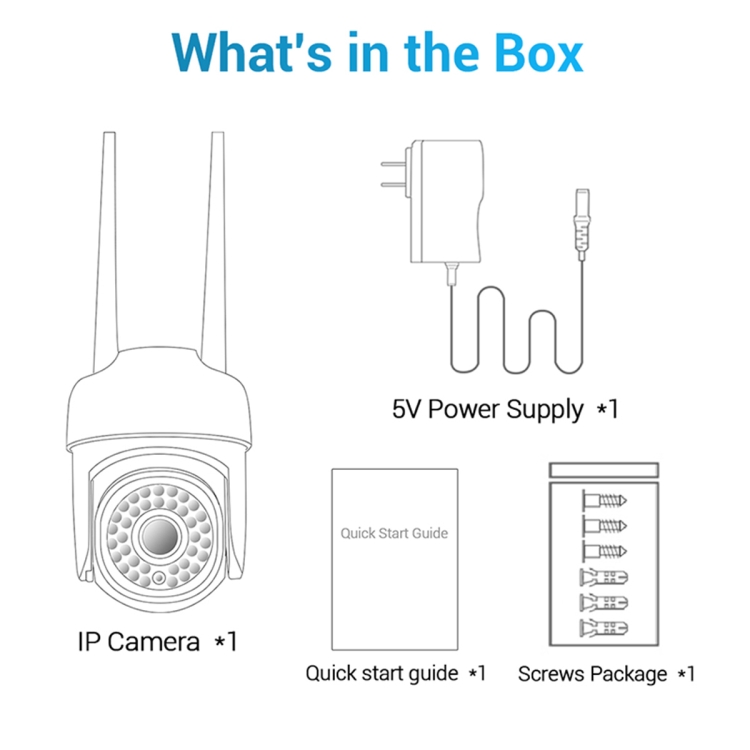

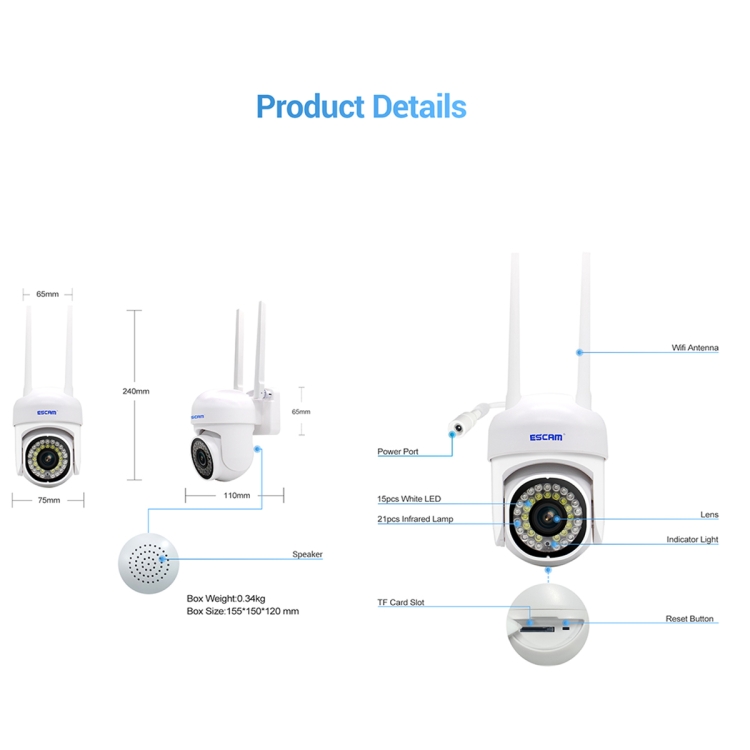

Parts List:
Camera x 1
Power Adapter x 1
Screw bag x 1
Instructions x 1
Specification:
| General |
| Performance |
Motion detection, Night Vision, Alarm detection, Two-way voice intercom |
| Memory |
up to 128GB (not included) |
|
| Network |
| Wireless |
WiFi 802.11 b/g/n |
|
| System / Hardware |
| Mobile Access |
Android, iPhone OS, iPad |
| Sensor Size |
1/4 inch Progressive Scan |
| Effective Pixel |
1280(H)×720(V) |
| Pan/Tilt-Horizontal Angle |
355 degrees |
| Pan/Tilt-Vertical Angle |
90 degree |
|
| Media Format |
| Video Compression Format |
H.264 |
| Frame Rate (FPS) |
15fps, 25fps |
|
| Physical Environment |
| Operate Temperature |
-10 to 50 Degree Celsius |
|
| Package Weight |
| One Package Weight |
0.34kgs / 0.76lb |
| One Package Size |
15.5cm * 15cm * 12cm / 6.1inch * 5.91inch * 4.72inch |
| Carton Weight |
18.00kgs / 39.68lb |
| Carton Size |
64cm * 47cm * 38cm / 25.2inch * 18.5inch * 14.96inch |
| Loading Container |
20GP: 233 cartons * 50 pcs = 11650 pcs
40HQ: 541 cartons * 50 pcs = 27050 pcs |
|
