Parameters:
1. Operating system: Compression technology: H.265 compression algorithm 32Kbps-2Mbps

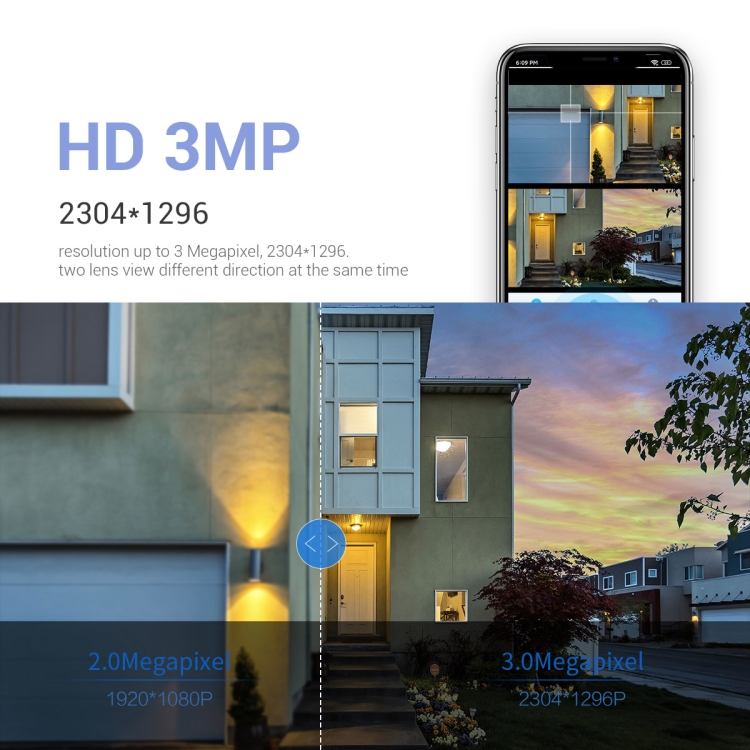

2. Resolution: 2304×1296
3. Frame rate: 1-25fps
4. CMOS performance: support automatic white balance, automatic gain control, automatic backlight compensation
5. Compression Type: Baseline Profile/Main Profile/Advanced Profile
6. LED lights: white light infrared day and night full color, 8pcs x 850IR, 8pcs 850 white light
7. Multiple uses: day and night full-color mode, infrared mode, white light mode
8. Panoramic display mode: plane direction, four-split screen, bullet ball machine linkage, dual-channel video recording, dual-screen switching
9. Power supply: DC12V/2A
10. Interface: 55×35 round head external power supply

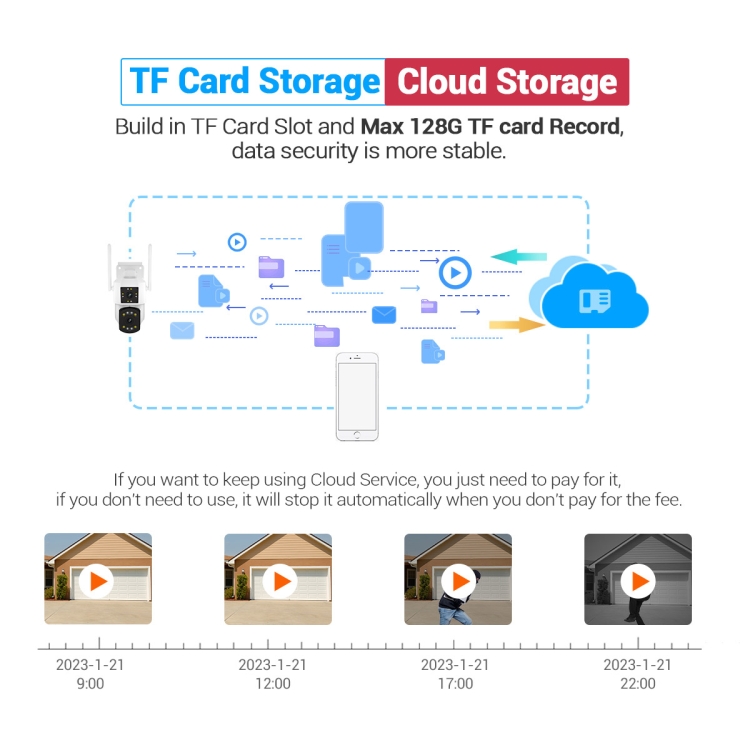

11. Video storage: cloud storage service; TF card support (maximum 128G)
12. Module: WiFi8188 IEEE802.11b/g/n
13. Network: WIFI 2.4GHZ single frequency 10Mbps/100Mbps
14. System configuration: iOS7.0, Android3.0 or above
15. Platform monitoring: support Android, Apple, tablet, and PC clients to view and monitor in real time
16. Restart: PCB board button reset
17. Household power supply: Household AC110~220V
18. Power consumption: LED white light 2.4W, infrared 2.4W
19. Working humidity: -10 degrees Celsius – 45 degrees Celsius, humidity less than 95% (no condensation)
20. Installation application: wall-mounted/ceiling-mounted
Features:

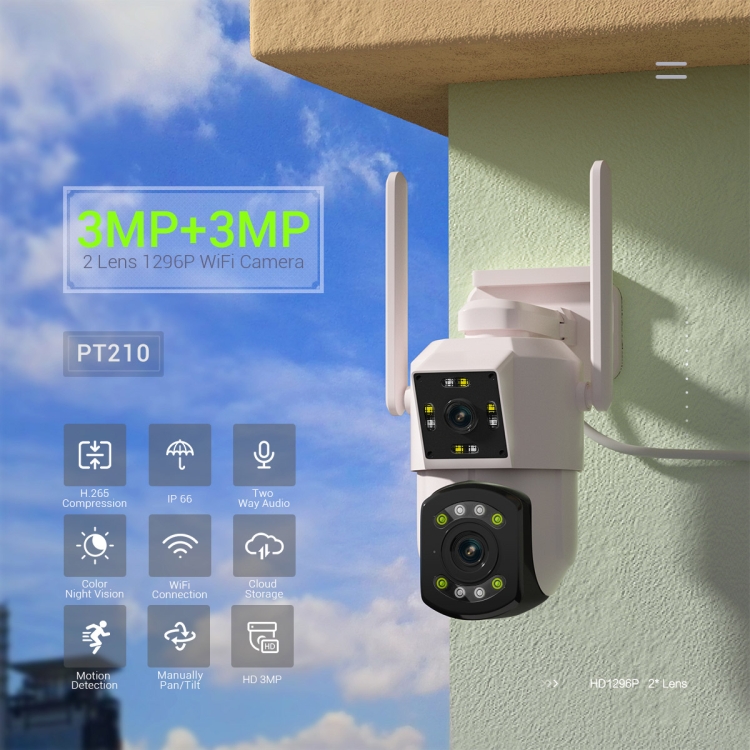

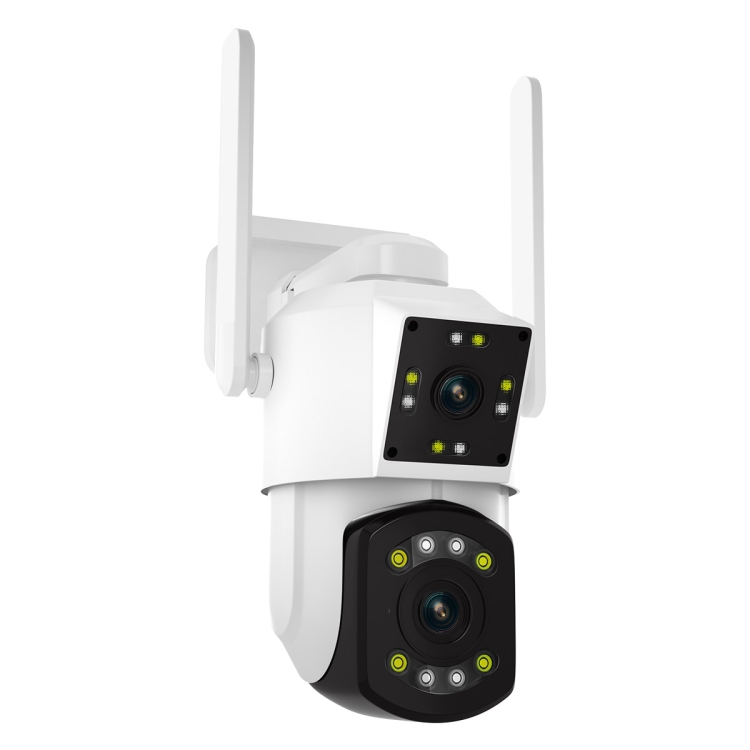

1. 2x3MP resolution, dual-lens dual-screen monitoring, high-definition picture quality, easy to use.

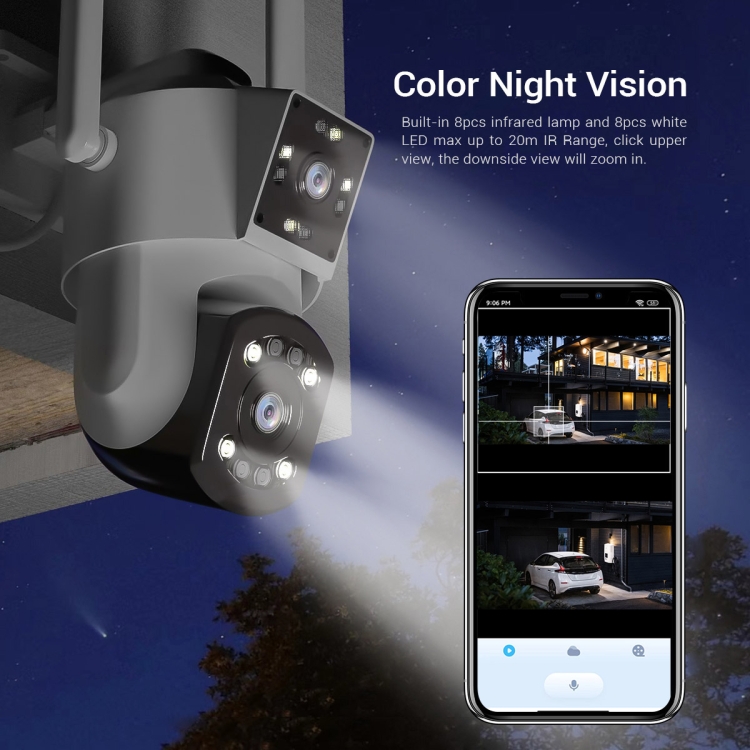

2. Intelligent dual-light mode, 8 infrared LEDs + 8 white LEDs, the infrared distance can reach 20 meters.
3. High-quality two-way talk with noise cancellation.
4. Support WiFi connection and ONVIF protocol.

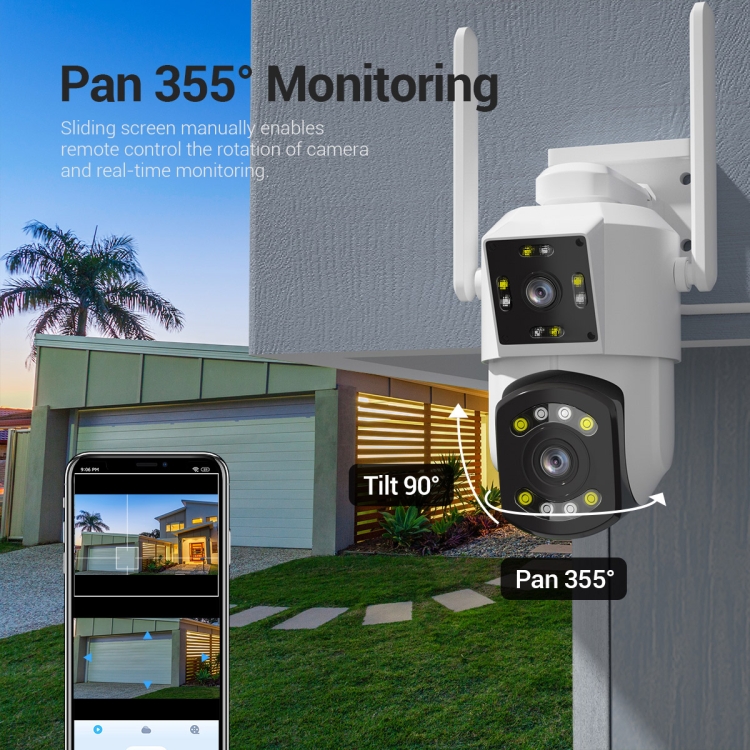

5. Support motion detection, pan/tilt monitoring, up and down 355 degrees, left and right 90 degrees, APP push notification.

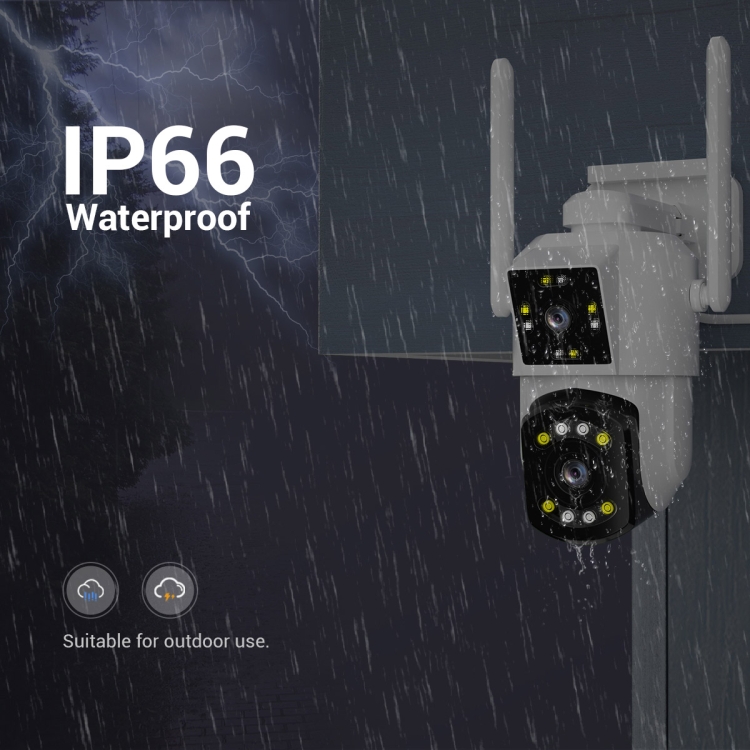

6. IP66 waterproof grade, can be installed and used outdoors.
Specification:
| General |
| Mount Types |
Wall bracket, Ceiling Bracket |
| Performance |
Motion detection, Night Vision, Alarm detection, Two-way voice intercom |
| Power Plug |
EU Plug, US Plug, UK Plug, AU Plug |
|
| Network |
| Wireless |
IEEE 802.11 a/b/g/n |
|
| System / Hardware |
| Mobile Access |
Android, iPhone OS |
| Pan/Tilt-Horizontal Angle |
355 degrees |
| Pan/Tilt-Vertical Angle |
90 degree |
|
| Media Format |
| Video Compression Format |
H.265 |
|
| Physical Environment |
| Environment |
Outdoor, Indoor |
| Operate Temperature |
-10 to 50 Degree Celsius |
|
| Package Weight |
| One Package Weight |
0.71kgs / 1.56lb |
| One Package Size |
21cm * 18cm * 13cm / 8.27inch * 7.09inch * 5.12inch |
| Carton Weight |
25.80kgs / 56.88lb |
| Carton Size |
72cm * 38cm * 59cm / 28.35inch * 14.96inch * 23.23inch |
| Loading Container |
20GP: 165 cartons * 40 pcs = 6600 pcs
40HQ: 383 cartons * 40 pcs = 15320 pcs |
|
