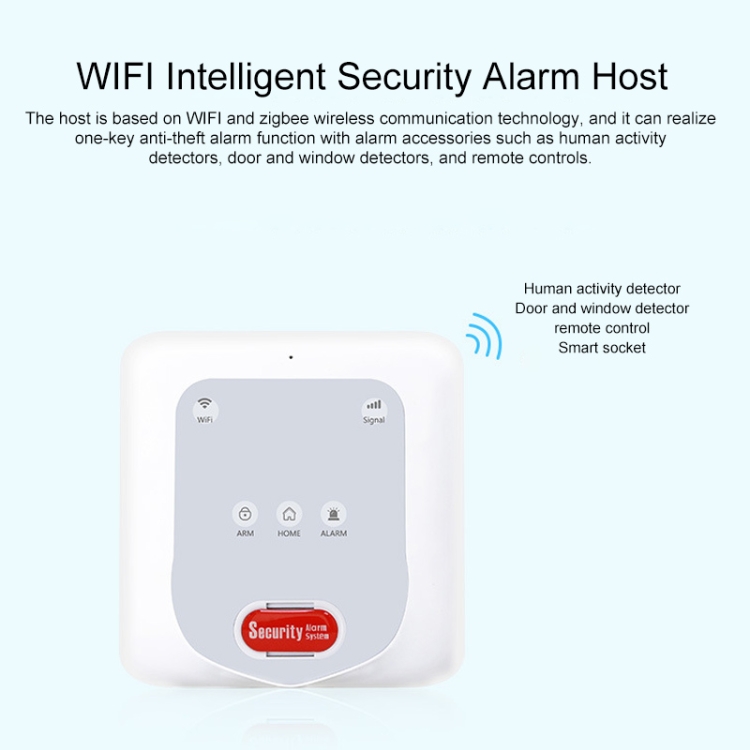

Alarm parameters:
1. Power input: DC 5V 2A.
2. WiFi standard: IEEE 802.11b / g / n.
3. Wireless frequency: Zigbee (transmit and receive).
4. Wireless distance: greater than or equal to 100m (open distance).
5. Working environment: temperature -10-50 degrees Celsius, humidity less than 90% RH.

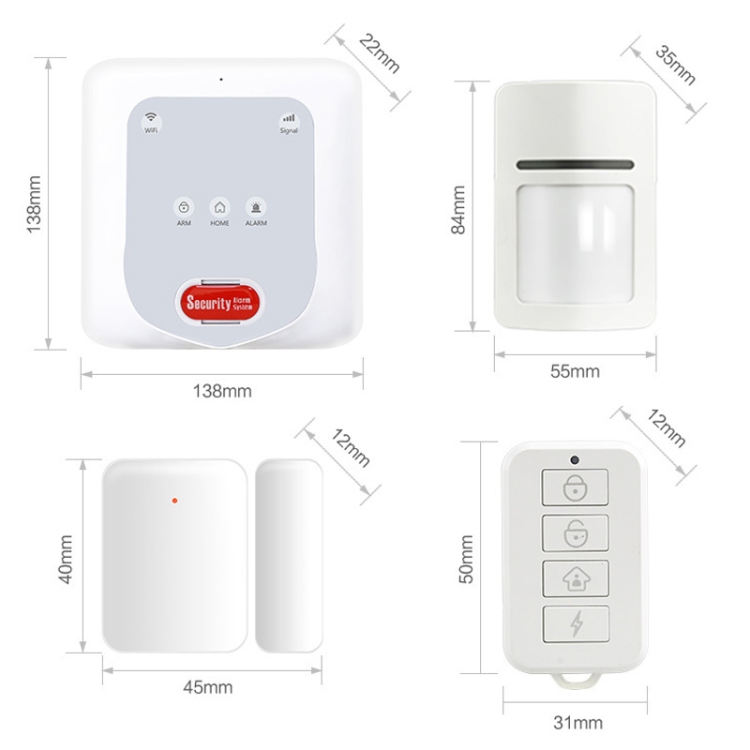

6. Size: 138×137.6×21.8mm.
Door magnetic detector parameters:
1. Input voltage: 3V CR2450.
2. Quiescent current: less than or equal to 15 microamperes.
3. Alarm current: less than or equal to 20mA.
4. Wireless frequency: Zigbee.
5. Wireless distance: greater than or equal to 150mm (open distance).
6. Working environment: temperature -10-50 degrees Celsius, humidity less than 80% RH.
Infrared detector parameters:
1. Input voltage: 3V CR123A.
2. Quiescent current: less than or equal to 35 microamps.
3. Alarm current: less than or equal to 35mA.
4. Wireless frequency: Zigbee.
5. Wireless distance: greater than or equal to 150mm (open distance).
6. Detection distance: 8m / 110 degrees.
7. Working environment: temperature -10-50 degrees Celsius, humidity less than 80% RH.

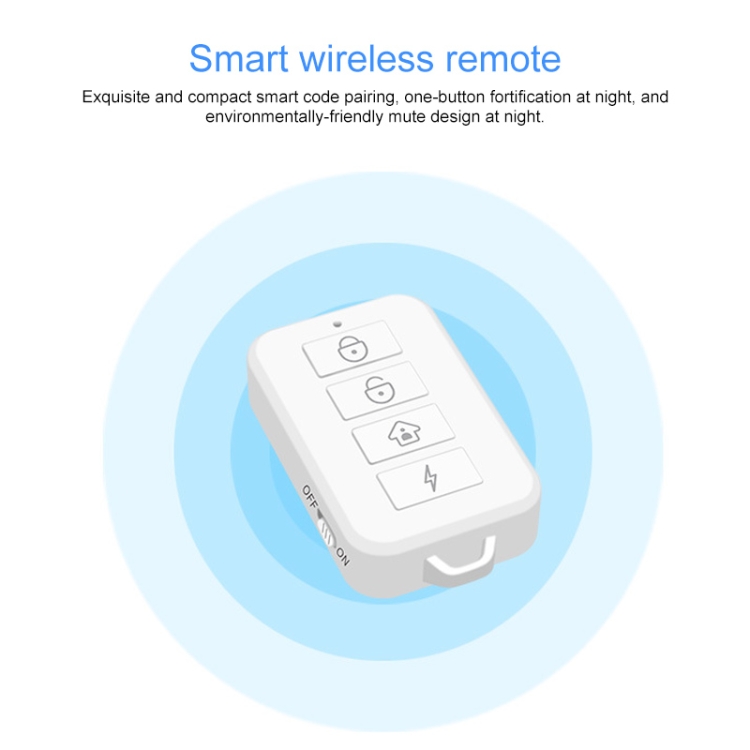

Remote control parameters:
1. Input voltage: 3V CR2450.
2. Quiescent current: less than or equal to 15 microamperes.
3. Alarm current: less than or equal to 10mA.
4. Wireless frequency: Zigbee.
5. Wireless distance: greater than or equal to 100mm (open distance).
6. Working environment: temperature -10-50 degrees Celsius, humidity less than 80% RH.
Intelligent siren parameters:
1. Input voltage: DC 5V / 2A.
2. Alarm mode: sound and light alarm.
3. Wireless frequency: Zigbee.
4. Quiescent current: less than or equal to 40mA.
5. Alarm current: less than or equal to 300mA.
6. Wireless distance: greater than or equal to 150mm (open distance).
7. Built-in battery: 3.7V / 300mAh.
8. Working environment: temperature -10-50 degrees Celsius, humidity less than 80% RH.
9. Sound decibel: 110dB.
Specification:
Package Weight
|
One Package Weight |
0.12kgs / 0.27lb
|
One Package Size |
6.7cm * 5cm * 2cm / 2.64inch * 1.97inch * 0.79inch
|
Carton Weight |
25.00kgs / 55.12lb
|
Carton Size |
33cm * 22cm * 22cm / 12.99inch * 8.66inch * 8.66inch
|
Loading Container |
20GP: 1669 cartons * 200 pcs = 333800 pcs
40HQ: 3875 cartons * 200 pcs = 775000 pcs
|
|
