Parameters
1. Main chip: Ankai AK3918EV200
2. Sensor: GC1054
3. Pixel: 1080P
4. Lens: 3.6mm
5. Video encoding: H264
6. Network frequency range: 2.4GHZ – 2.4835GHZ
7. Day and night switching mode: color / black and white
8. WIFI: 802.11b/g/n; WEP, WPA, WPA2 encryption
9. Local storage: up to 128GB TF card
10. Power supply: 110V/-240V
11. Viewing angle: 70 degrees
12. Minimum illumination: color: 0.01 Lux, black/white: 0.001 Lux
13. The rotation angle of the gimbal: left and right: 350 degrees, up and down: 90 degrees
14. Lighting: Infrared lights: 4 infrared lights, white lights: 4 white lights
15. APP operating system: IOS / Android
16. Product size: 95x95x165mm
17. Product weight: 0.23kg
Features
1. 1080P high-definition pixels, the image is clear and delicate.
2. Support cloud storage and TF card video storage, the maximum support 128G capacity TF card.
3. Built-in high-sensitivity MIC and speaker, support two-way voice intercom.
4. Infrared and white light dual-light design supports two adjustable night vision modes to achieve full color at night.
5. Support alarm recording, all-day recording, time segment recording
6. Support motion detection, push alarm information in real time.

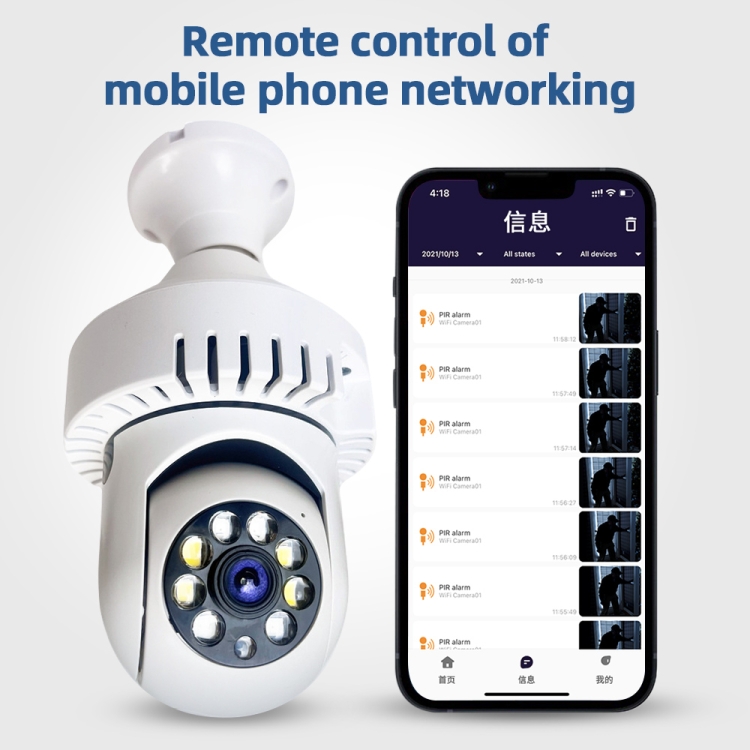

7. Support mobile phone remote monitoring, view the live scene anytime and anywhere.
8. Support smoke warning, realize warning and prevent fire by monitoring the concentration of smoke.
Specification:
General
|
Performance |
Motion detection, Night Vision, Alarm detection, Two Way Audio |
|
Network
|
Wireless |
WiFi 802.11 b/g/n |
WIFI Encryption |
WAP2, WEP, WPA |
|
System / Hardware
|
Mobile Access |
Android, iPhone OS |
Pan/Tilt-Horizontal Angle |
340 Degrees |
Pan/Tilt-Vertical Angle |
90 degree |
|
Night Vision
|
Configuration |
4 array LEDs |
|
Package Weight
|
One Package Weight |
0.38kgs / 0.83lb
|
One Package Size |
18.5cm * 11cm * 10cm / 7.28inch * 4.33inch * 3.94inch
|
Carton Weight |
19.00kgs / 41.89lb
|
Carton Size |
56cm * 38cm * 52cm / 22.05inch * 14.96inch * 20.47inch
|
Loading Container |
20GP: 240 cartons * 50 pcs = 12000 pcs
40HQ: 559 cartons * 50 pcs = 27950 pcs
|
|
