Video:
1. Imaging Sensor: CMOS
2. Scanning System: 2:1 Interlace
3. Total Pixel: PAL: 752H x 582V, NTSC: 768H x 492V
4. Horizontal Resolution: 420TVL
5. Illumination: 0lux with IR ON
6. S/N Ration: Above and equal 52dB
7. Video Output: 1.0Vp-p/75 ohm
8. Correction: 0.45
9. Frequency: H: 15.736KHz, V: 15.625KHz, V: HZ
10. Sync. System: Internal Synchronization

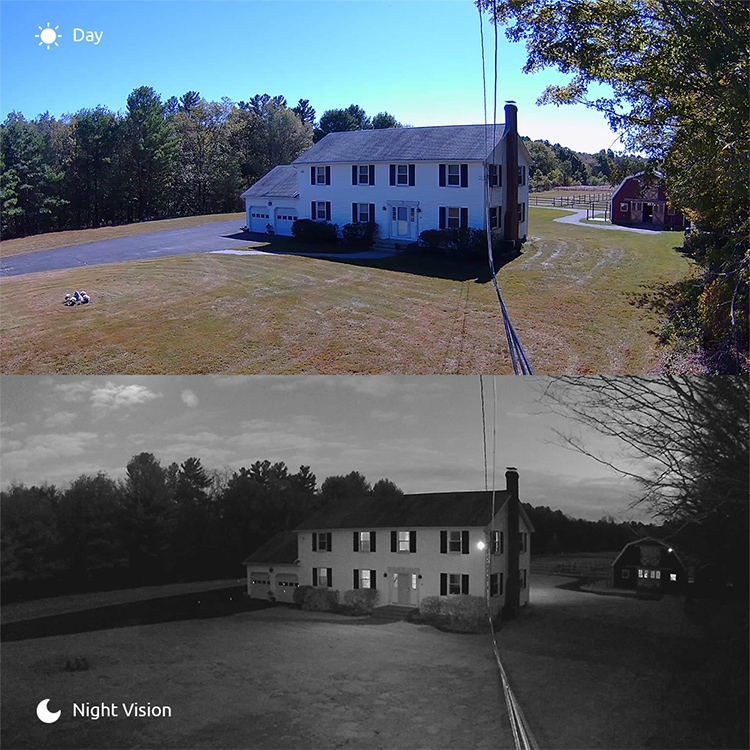

11. Day & Night: Auto Color to B/W
12. Electronic Shutter Speed: 1/50-1/10,000s
13. Cable Length: 40cm
Operational:
1. White Balance: ATW
2. BLC: AUTO
3. AGC: Auto/Manual
Lens:

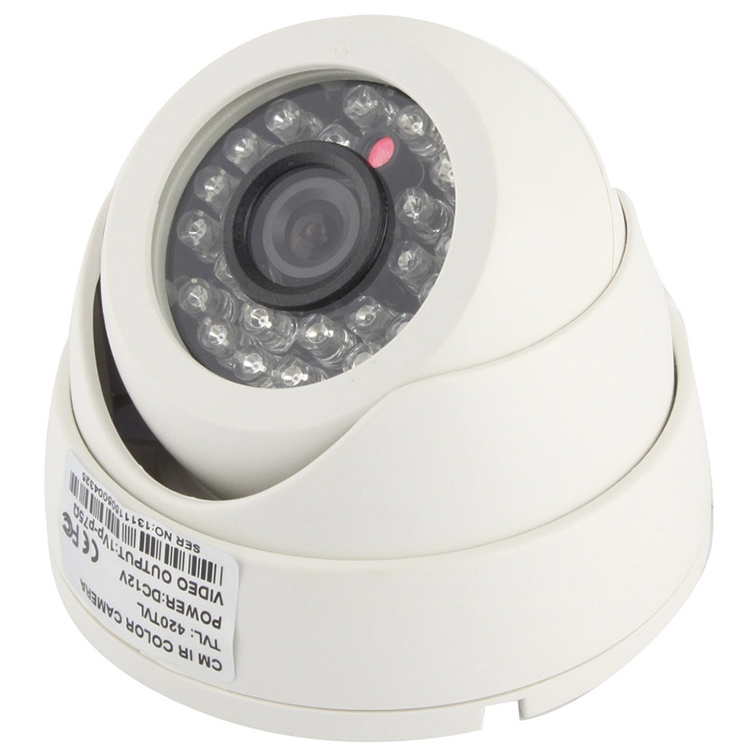

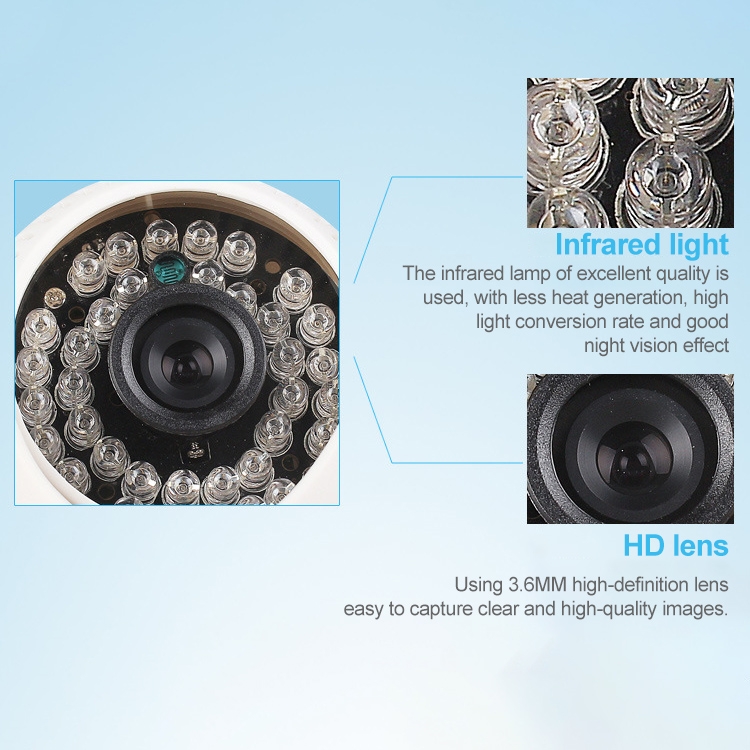

1. 24 IR LED
2. IR Distance: 20m
3. Lens Type: 3.6mm Fixed Lens (Standard)
4. Mount Type: CS
Electrical:
1. Power Supply: DC12V+/-5%
2. Power Consumption: Less and equal 6W
Environmental:
1. Work Consumption: Less and equal 85%RH
2. Operation Temperature: -15-80 degree
Physical:
1. Case Material: ABS
Specification:
|
General
|
| Power Depletion |
<6W(Camera) |
|
|
System / Hardware
|
| Electronic Shutter |
1 / 50-1 / 10,000s |
| Day/Night |
Auto Color to B/W |
| Minimum Illumination |
0LUX |
| Gain Control |
Manual, Automatic |
|
|
Media Format
|
| Horizontal Resolution |
420TVL |
| Video Output |
1.0Vp-p/75 ohm |
|
|
Night Vision
|
| Configuration |
24 infrared LEDs |
|
|
Physical Environment
|
| Environment |
Outdoor, Indoor |
|
|
Package Include
|
| Package Contents |
1 x Camera
1 x Mounting Accessories
1 x User Manual |
|
|
Package Weight
|
| One Package Weight |
0.41kgs / 0.90lb
|
| One Package Size |
10cm * 10cm * 9cm / 3.94inch * 3.94inch * 3.54inch
|
| Carton Weight |
8.20kgs / 18.08lb
|
| Carton Size |
46cm * 30cm * 30cm / 18.11inch * 11.81inch * 11.81inch
|
| Loading Container |
20GP: 644 cartons * 30 pcs = 19320 pcs
40HQ: 1495 cartons * 30 pcs = 44850 pcs
|
|
