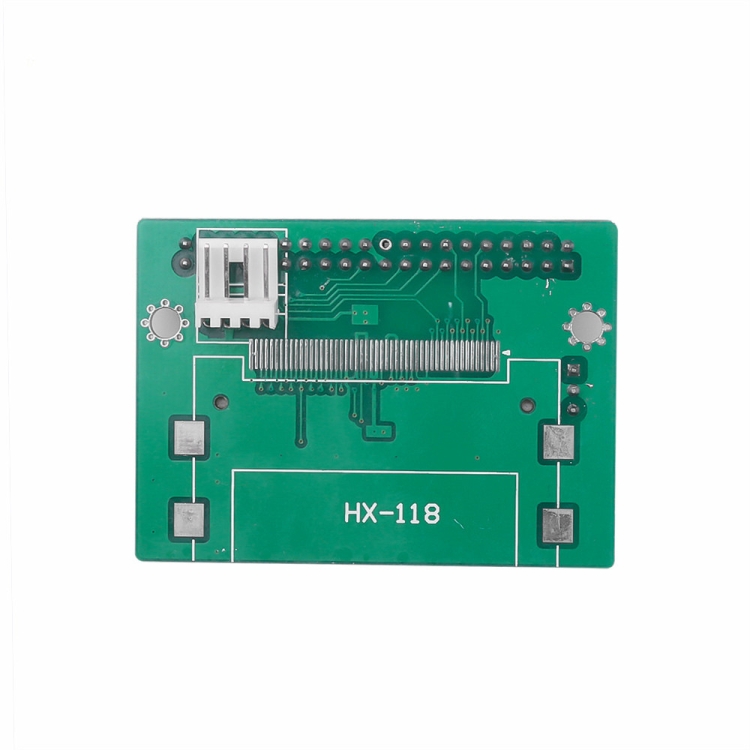

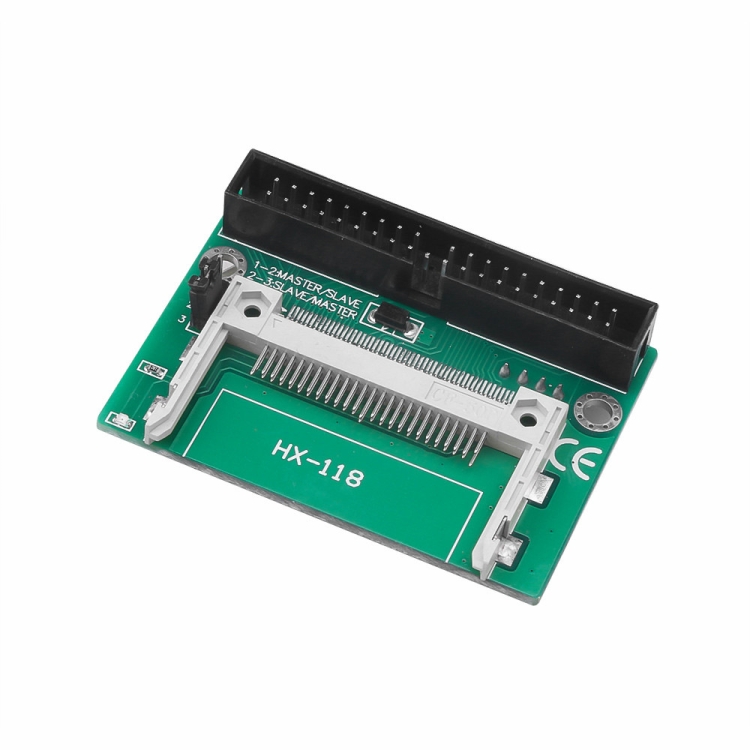

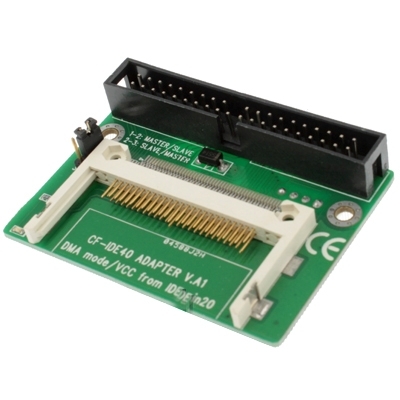

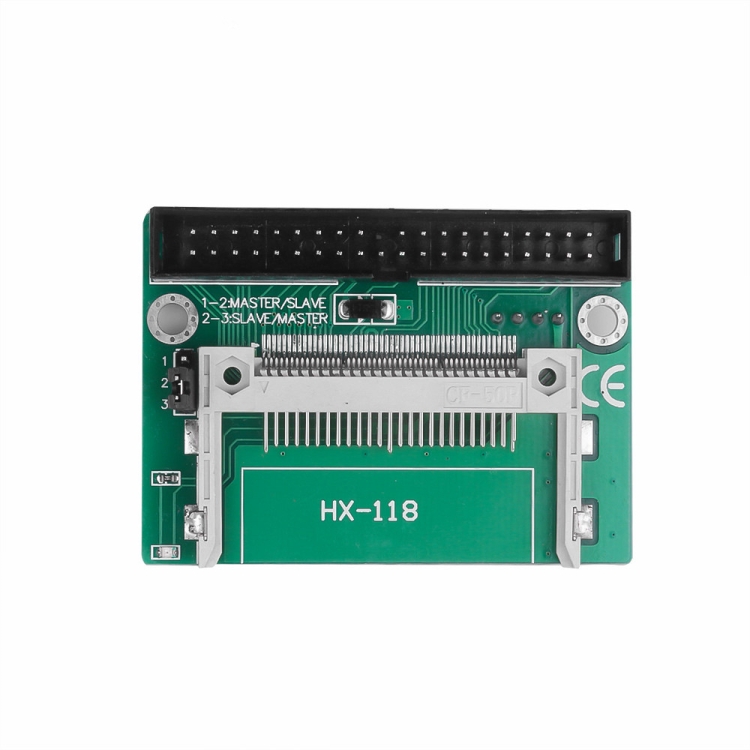

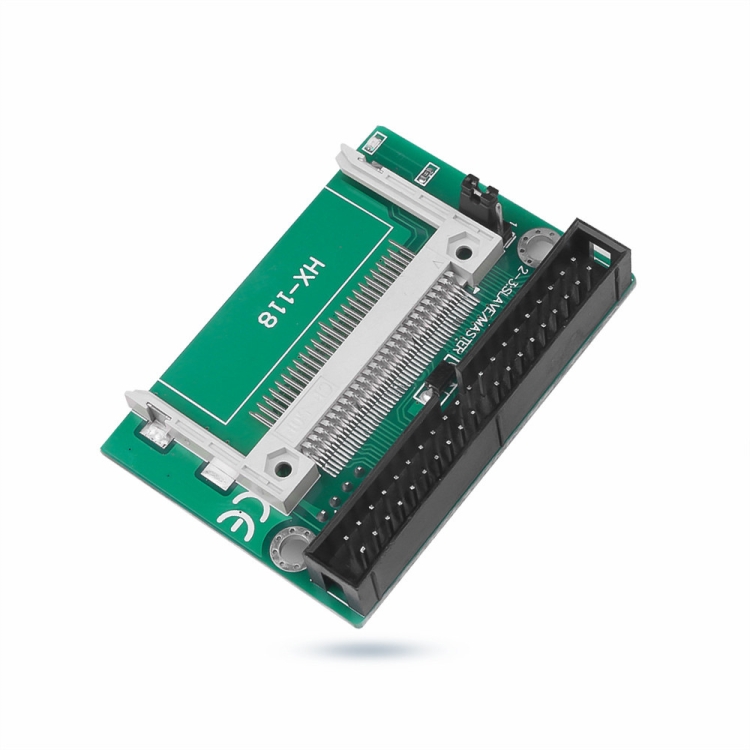

1. Accord with: CF spec Ver2.0 and IDE / ATA-33 spec
2. Standard IDE interface: true-IDE mode, support DMA-33 transfer mode
3. Support CF-I and CF-II : also support IBM micro-driver with CF-II interface
4. DE 40 Pin / 25.54mm or 44 pin / 2.0mm female or male connector: plug card into IDE socket directly or connect to motherboard by a cable
5. CF socket mounted flexible: different CF socket can be mounted, single / double side selectable for double-side type
6. Master/slave jumper: CF card on each side can be configured as Master or slave
7. Use CF as DOM: Supply auto select from IDE 40 pin-20 or FDD power connector, or from IDE WHEN use IDE 44
8. System Supported: Windows 98/2000/ME/XP
9. Size: 6×4.5×1.5cm
10. Weight: 17g
Specification:
| Package Weight |
| One Package Weight |
0.03kgs / 0.06lb |
| One Package Size |
9.5cm * 6.5cm * 1.7cm / 3.74inch * 2.56inch * 0.67inch |
| Carton Weight |
3.00kgs / 6.61lb |
| Carton Size |
30cm * 20cm * 20cm / 11.81inch * 7.87inch * 7.87inch |
| Loading Container |
20GP: 2222 cartons * 100 pcs = 222200 pcs
40HQ: 5158 cartons * 100 pcs = 515800 pcs |
|
