Features

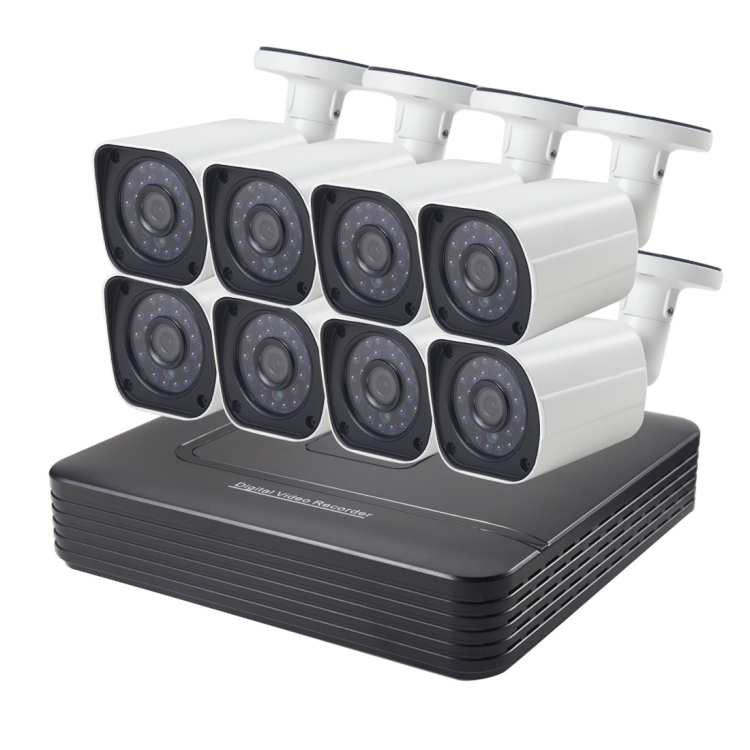

1. Support 8CH 1080P 1 HDD NVR.
2. 8 x 1.0MP IP Camera(24 x IR LED, IR distance 15m).
3. High performance H.264 compression technology, processing and flexible.
4. Supports full real-time encoding video, full real-time playback of multi-channel synchronous decoding.
5. Main stream and Sub-stream encoding: Main stream for local storage, ensure image quality; Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.
6. Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, EMAIL,IP searches etc.) And perfect support (WEB, Client, SDK), easy to achieve interoperability.
7. Support IE, Chrome, Firefox, Safari browsers.
8. With DNS (ARSP),easy to monitor remotely,3322 (Greek network), dyndns, oray (peanut shells), myq-see and other DNS are also provided.
9. With XM cloud service, easy to achieve a variety of network penetrations ,one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate.
10. Support various mobile monitoring (iPhone, Windows Mobile, BlackBerry,Symbian, Android).
11. Got CE & RoHS certification.

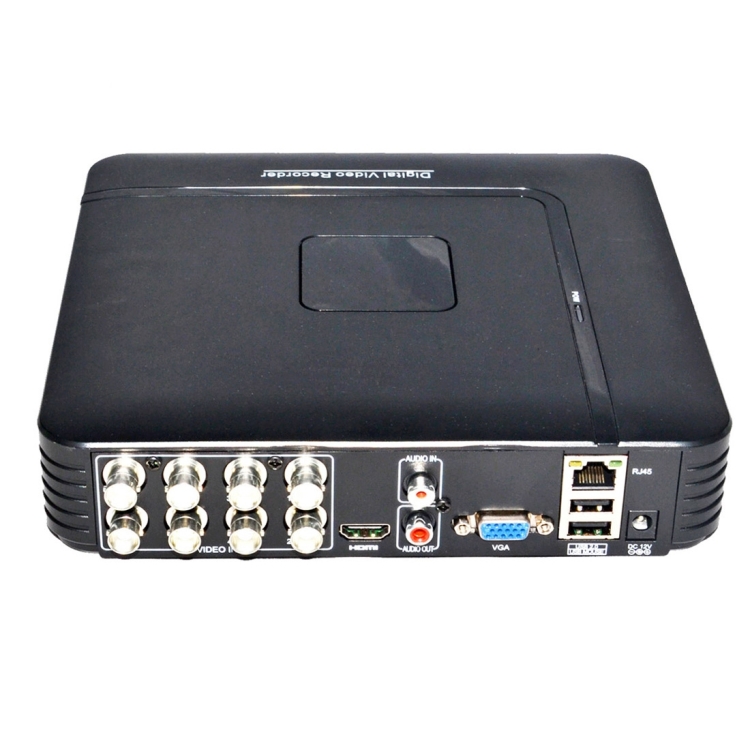

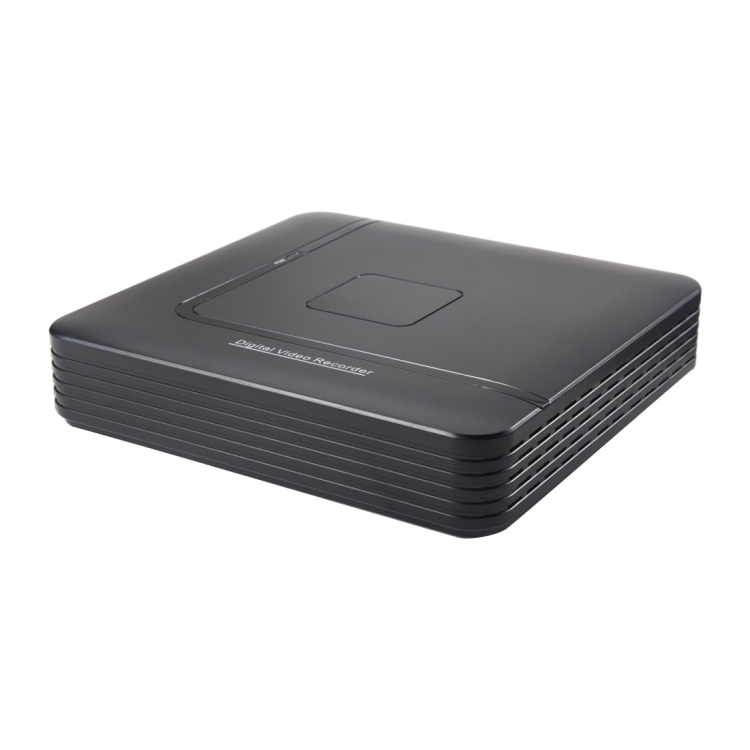

NVR
1. With XM cloud service, easy to achieve a variety of network penetrations, one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate.
2. H.264 compression algorithm, 30% decrease of stream due to advanced space-time filtering technology.
3. Supports full real-time encoding video, full real-time playback of multi-channel synchronous decoding. 1. With XM cloud service, easy to achieve a variety of network penetrations, one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate.
2. H.264 compression algorithm, 30% decrease of stream due to advanced space-time filtering technology.
3. Supports full real-time encoding video, full real-time playback of multi-channel synchronous decoding.
4. Main and Sub Stream: Main stream and sub-stream encoding. Main stream for local storage, ensure image quality; Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.
5. Mobile monitor: Supports various mobile monitoring(iPhone, Windows Mobile, BlackBerry,
Symbian, Android).
6. Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, EMAIL,IP searches etc. And perfect support WEB, Client, SDK), easy to achieve interoperability.
7. With DNS (ARSP),easy to monitor remotely, 3322(Greek network), dyndns, oray (peanut shells), myq-see and other DNS are also provided.
8. Boot screen free replacement, more than twenty languages(Chinese, Dutch, English, French, German, Italian, Hebrew, Kazakh, Farsi, Polish, Portuguese, Russian, Spanish, Thai, Korean, Czech, Turkish, Hungarian, Romanian, Bulgarian), over 10 sets of GUI interface, ten kinds of remote control, which make our products different from others.
9. With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.
10. Monitor quality: VGA, HDMI: HD.
11. Encode ability: 8*1080N@12fps.
12. Decode ability: 4*1080N@12fps.
13. Multi-mode input: analog: analog: analog: 4*1080N, not support CVBS(960H/D1).
14. Recording Mode: Support manual, alarm, motion detection, timing.
15. Search mode: Search by time, calendar, event, channel.
16. Motion Detection: Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel).
17. Backup mode: Network, USB hard disk, USB burner, SATA burner.
18. Video input: 8ch BNC.
19. Video output: 1ch VGA,1ch HDMI(not support audio).
20. Audio input: 1ch RCA.
21. Audio output: 1ch RCA.
22. SATA HDD Port: Support MAX 6TB HDD

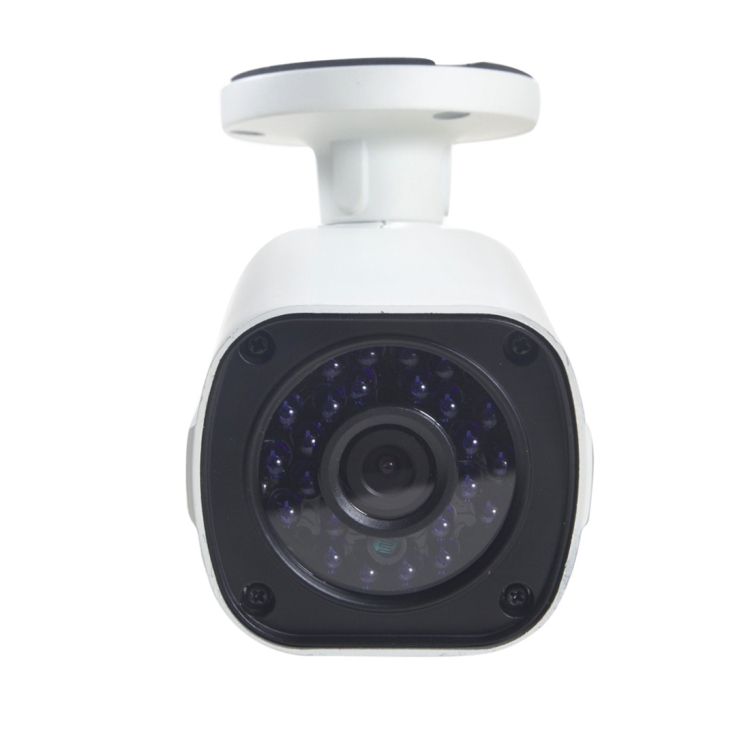

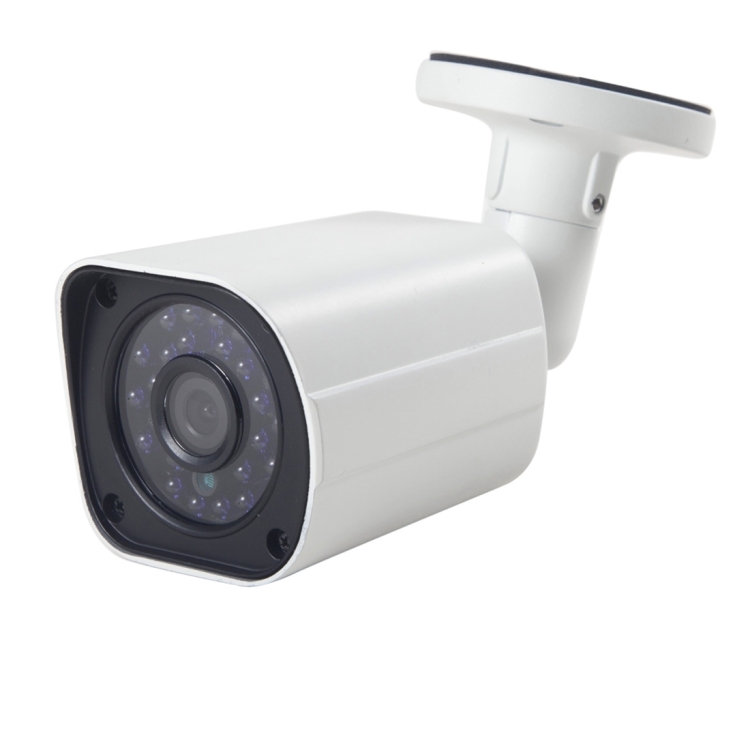

IP Camera
1. Wide power supply design, can work in a wide voltage range.
2. Green products, low current, low power consumption, energy saving.
3. Life waterproof.
4. Video lighting, anti-static dry flex circuit design, effective against high-voltage outdoor lighting, power surges and static electricity.
5. Each product got rigorous aging test. International brands of materials, creating product consistency and stability.
6. High speed, long distance real-time transmission.
7. Support night vision and white balance, equipped with 24 IR LED lights, the maximal IR LED length is 15m.
8. Effective Pixels: 1280×800.
9. Video Frame Rate: PAL: 25fps@720P, NTSC: 30fps@720P.
Specification:
|
General
|
| Performance |
Motion detection, Night Vision |
| Power Input |
DC 12V/1A (Camera) |
|
|
Network
|
| Network Interface |
RJ45 10/100MB Ethernet interface |
| Protocol |
DDNS, DHCP, PPPOE, FTP, DNS |
| Web Browser |
IE, Google Chrome, Firefox, Safari |
|
|
System / Hardware
|
| Mobile Access |
Android, iPhone OS |
| Electronic Shutter |
1/50~1/100000s |
|
|
Media Format
|
| Video Compression Format |
H.264 |
| Audio Compression Format |
G711-A |
|
|
NVR
|
| System |
Operating system: Embedded LINUX OS |
| Recording |
Recording mode: Manual recording, motion detection recording, time recording, alarm recording |
| Video interface |
Video output: 1ch VGA and 1ch HDMI |
| Network |
RJ45 10M/100M self-adaptive LAN port |
| USB Port |
2 x USB 2.0 ports |
| Operation temperature |
0 to 55 Degree Celsius |
| Operation humidity |
10-90 percent |
|
|
Physical Environment
|
| Operate Temperature |
0 to 55 Degree Celsius |
| Working Humidity |
10 to 90 percent |
|
|
Package Include
|
| Package Contents |
8 x Cameras
1 x USB Mouse
1 x NVR
1 x CD
1 x User Manual
9 x Power Adapters (US, UK, EU, AU Optional))
8 x Screw Sets |
|
|
Package Weight
|
| One Package Weight |
4.75kgs / 10.47lb
|
| One Package Size |
36.8cm * 26.8cm * 21cm / 14.49inch * 10.55inch * 8.27inch
|
| Carton Weight |
10.10kgs / 22.27lb
|
| Carton Size |
56cm * 39cm * 23cm / 22.05inch * 15.35inch * 9.06inch
|
| Loading Container |
20GP: 530 cartons * 2 pcs = 1060 pcs
40HQ: 1232 cartons * 2 pcs = 2464 pcs
|
|
