1. Impedance: 50 Ohms
2. Phase balance: ±3 degrees
3. Surface treatment: sandblasting guide
4. Gold-plated joints, sandblasting process
5. Port connector: SMA-Female
6. Low insertion loss, low standing wave, high isolation
7. Working temperature: -40~+75 degrees celsius
8. Frequency range: 500~6000MHz
9. Amplitude balance: less than or equal to 0.3dB
10. Isolation: Typ.23dB / Min.20dB

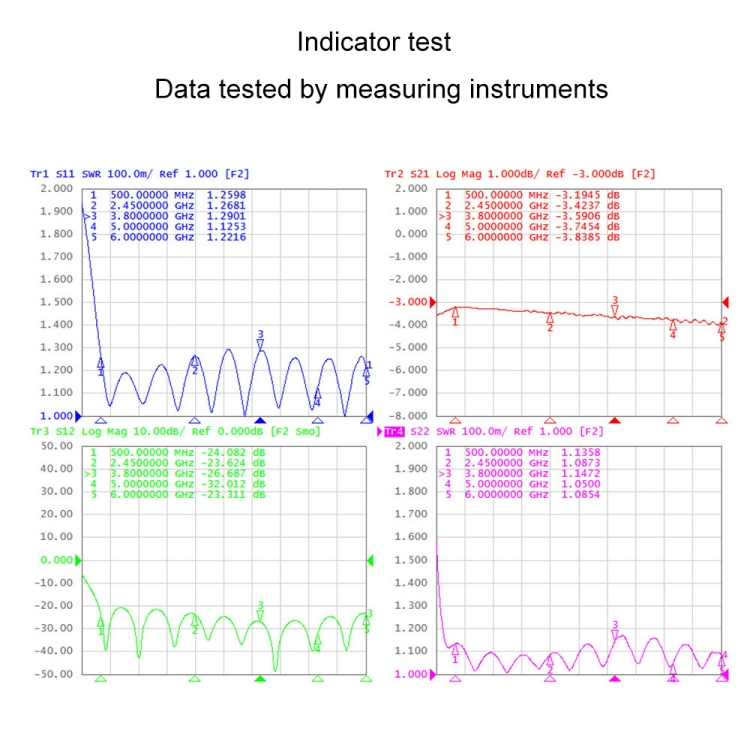

11. Input standing wave: Typ. 1.25／Max.1.3
12. Output standing wave: Typ. 1.12 / Max.1.2
13. Withstand power: 30W for splitter; 2W for combiner
14. Insertion loss: less than or equal to 1.0dB (excluding theoretical loss of 3.0dB)

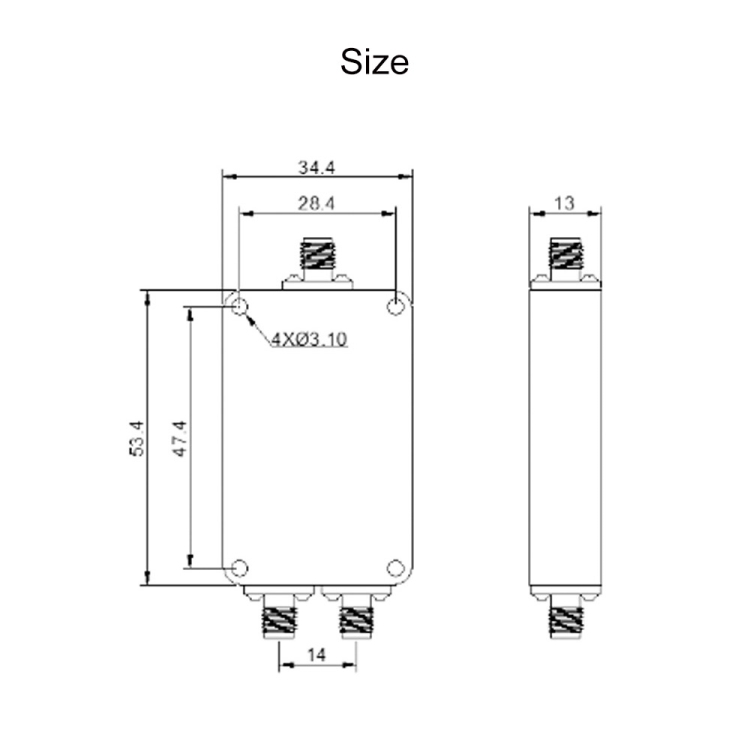

15. Dimensions: 53.4×34.4x13mm
16. Weight: 50g
Specification:
| Package Weight |
| One Package Weight |
0.07kgs / 0.16lb |
| One Package Size |
7cm * 4cm * 2cm / 2.76inch * 1.57inch * 0.79inch |
| Carton Weight |
30.00kgs / 66.14lb |
| Carton Size |
51cm * 29cm * 14cm / 20.08inch * 11.42inch * 5.51inch |
| Loading Container |
20GP: 1287 cartons * 404 pcs = 519948 pcs
40HQ: 2989 cartons * 404 pcs = 1207556 pcs |
|
