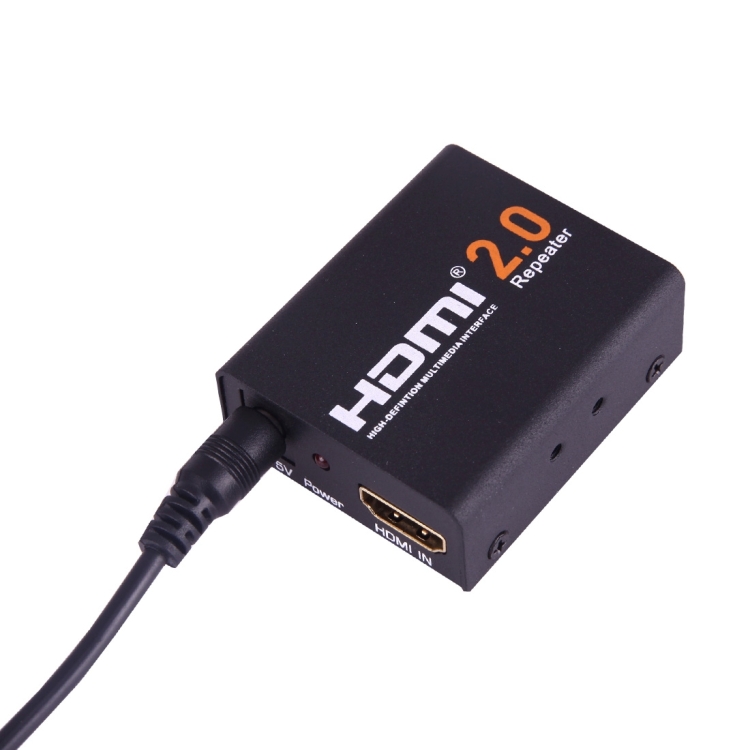

1. Compliant to HDMI 2.0 and HDMI 1. x specification.
2. Serial data rate up to 6.0 Gbps, support for ultra-high resolution 4K / 2K @ 60 Hz format.
3. Support HDCP 2.2.
4. Support 3D transmission.
5. When input resolution is 4K/60Hz RGB 4:4:4; both input and output transmission distance are up to 15 meters using HDMI 2.0 AWG24 cable.
6. When input resolution is 4K/30Hz RGB 4:4:4 or 4K/60Hz RGB 4:2:0, both input and output transmission distance are up to 20 meters using HDMI 2.0 AWG24 cable.
7. When input resolution is 1080P/60Hz, both input and output transmission distance are up to 360 meters using HDMI 2.0 AWG24 cable.
8. Audio and video lossless transmission without any delay.
9. Simple installation.
Specification:
|
General
|
| Interface |
DC IN, 1 x HDMI Output, 1 x HDMI IN |
| Power Supply |
DC 5.0V / 1.0A |
| Transmission Rate |
1.8Gbps |
| Operating Temperature |
-10 to 55 Degree Celsius |
| Storage Temperature |
-20 ~ 60 Degree Celsius |
| Operating Humidity |
10 ~ 90 Percent RH (Non-condensing) |
| Storage Humidity |
5 ~ 95 Percent RH (Non-condensing) |
| ESD Protection Human Body Model |
+-8kV (air-gap discharge)
+-4kV (contact discharge) |
|
|

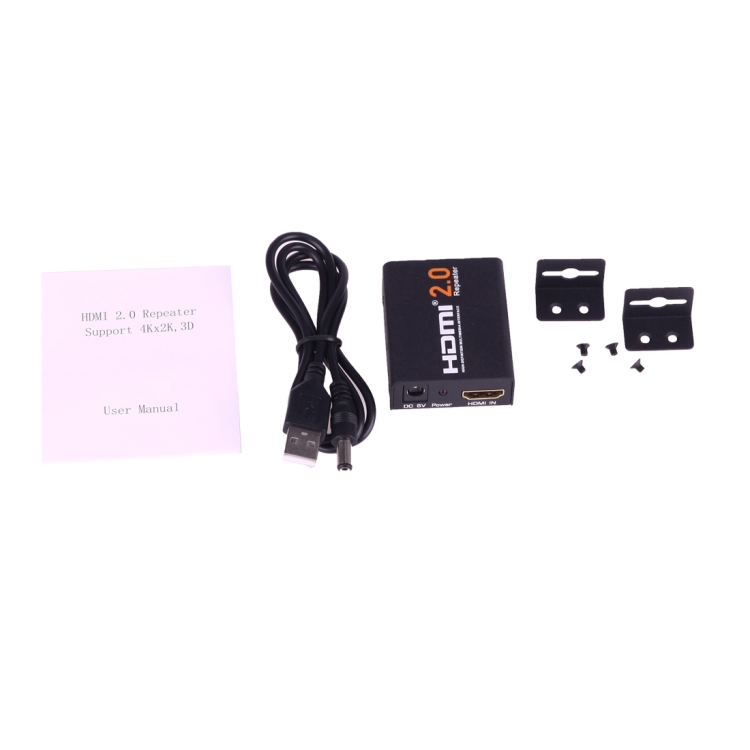

Package Include
|
| Package Contents |
1 x USB Cable
1 x User Manual
1 x Repeater
1 x Mounting Accessories Set |
|
|
Package Weight
|
| One Package Weight |
0.12kgs / 0.26lb
|
| One Package Size |
14cm * 7.5cm * 2.5cm / 5.51inch * 2.95inch * 0.98inch
|
| Carton Weight |
19.00kgs / 41.89lb
|
| Carton Size |
52cm * 32cm * 30cm / 20.47inch * 12.6inch * 11.81inch
|
| Loading Container |
20GP: 534 cartons * 160 pcs = 85440 pcs
40HQ: 1240 cartons * 160 pcs = 198400 pcs
|
|
